A Versatile All-in-One Controller for Rental and Fine-Pitch LED Applications
The NovaStar VX600 All-in-One LED Video Controller integrates video processing and video control into one box, designed for AV professionals who need dependable, feature-rich performance for medium and high-end rental productions, stage control systems, and fine-pitch LED screens. Combining powerful signal processing with flexible connectivity, the VX600 delivers an excellent image display experience in a compact, all-in-one footprint.
Built for Ultra-Wide and Ultra-High LED Screens
This controller is made for installations that need reliable video control without stacking multiple devices. It features 6 Ethernet ports and supports three working modes, video controller, fiber converter, and Bypass, giving integrators the flexibility to adapt the device to different system architectures on-site. A single VX600 unit can drive up to 3.9 million pixels, with a maximum output width of 10,240 pixels and height of 8,192 pixels, making it well-suited to ultra-wide and ultra-high LED screen applications.
Comprehensive Signal Reception and Image Processing
The VX600 is capable of receiving a variety of professional video signals, including HDMI 1.3, DVI, and 3G-SDI, and processing high-resolution 4K images for output. The device supports stepless output scaling, low latency, and pixel-level brightness and chroma calibration, working alongside all-round color adjustment, including brightness, contrast, saturation, hue, and gamma, to present a refined, consistent image across the entire display.
Streamlined Control for Field Operation

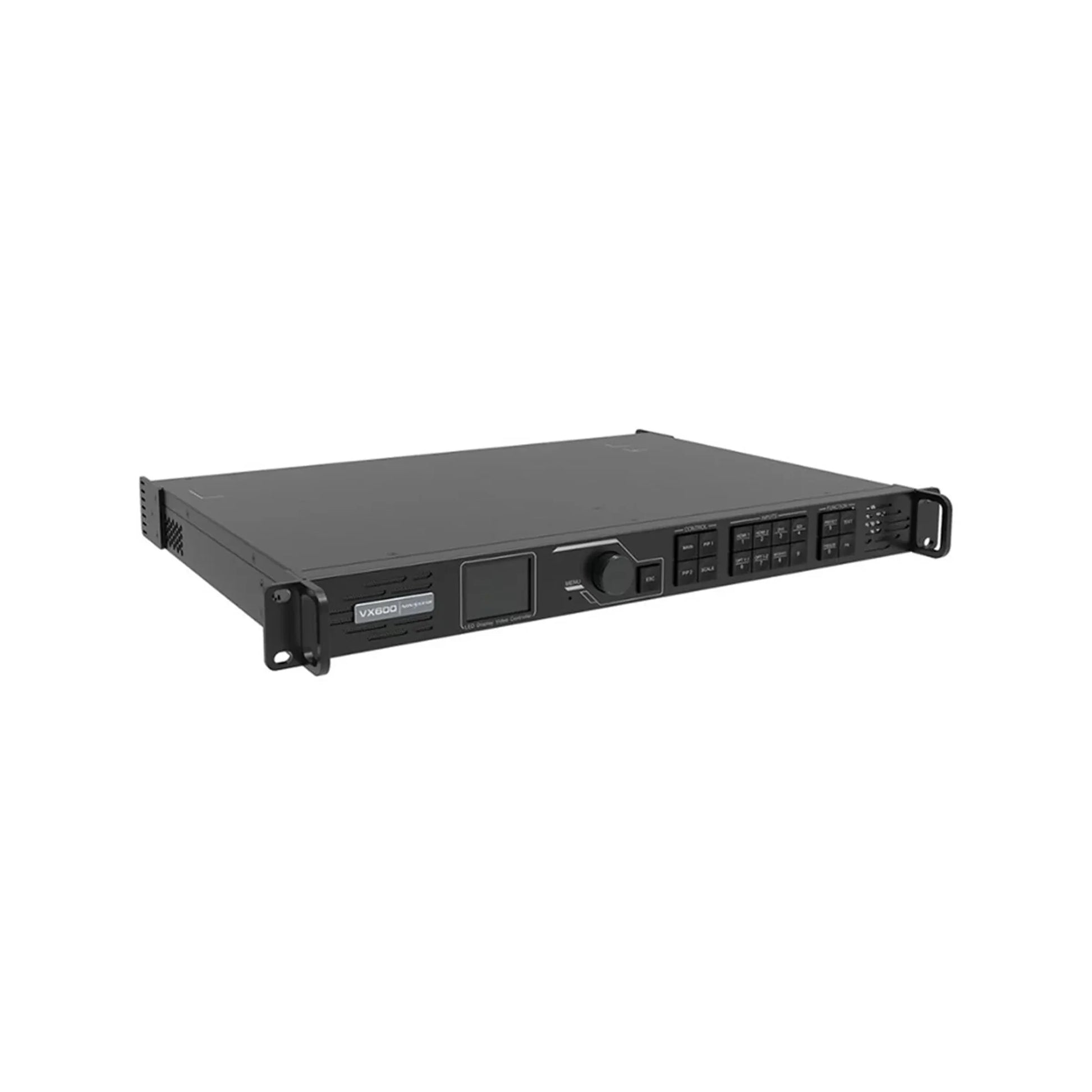

The VX600 works seamlessly with NovaStar's NovaLCT and V-Can software, greatly facilitating in-field operations such as screen configuration, Ethernet port backup settings, layer management, preset management, and firmware updates. Multiple operation modes allow the device to be controlled via V-Can, NovaLCT, or the front panel knob and buttons, giving operators flexibility in how they manage the system on-site.
Key Features at a Glance
- Product: NovaStar VX600 All-in-One LED Video Controller
- Function: integrated video processing and video control
- Working modes: video controller, fiber converter, Bypass
- Maximum pixel loading capacity: up to 3.9 million pixels
- Maximum output resolution: 10,240 x 8,192 pixels
- Inputs: 2x HDMI 1.3 (in and loop), 1x DVI, 1x 3G-SDI

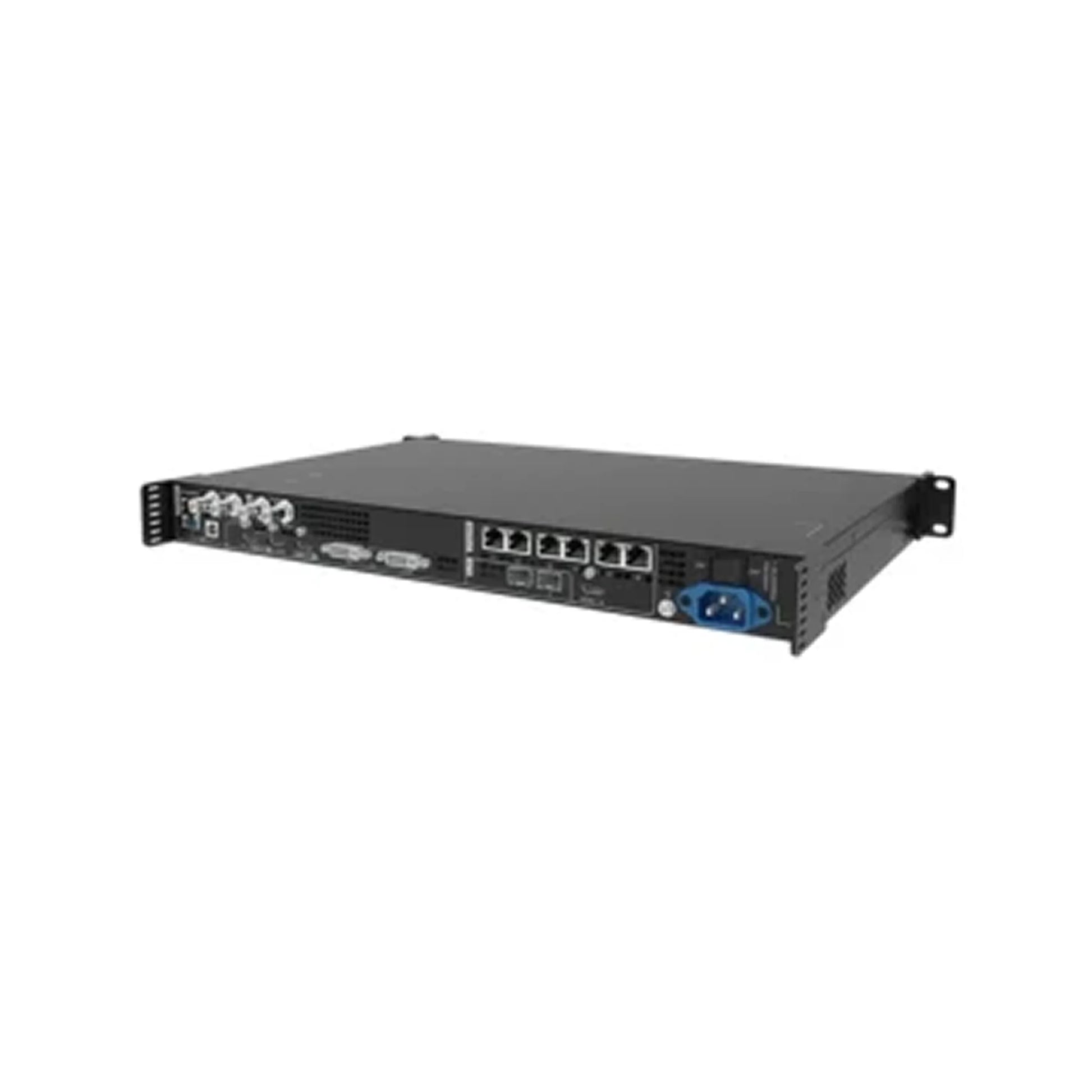

- Outputs: 6x Gigabit Ethernet (RJ45), 2x optical fiber (10G), 1x HDMI 1.3 (monitoring)
- Layers: up to 3 layers
- Presets: memory for 10 presets
- Image quality: stepless output scaling, low latency, pixel-level brightness and chroma calibration
- Control: V-Can, NovaLCT, front panel knob/buttons; cascading via USB
- Power supply: AC 100-240V, 50/60Hz
- Power consumption: approx. 28W
- Dimensions: approx. 483.6 x 351.2 x 50.1mm
- Weight: approx. 4kg
- Best-fit applications: medium and high-end rental, stage control systems, fine-pitch LED screens
A Strong Choice for Rental, Staging, and Fine-Pitch Installations
The NovaStar VX600 is a smart choice for AV professionals who need a compact, all-in-one controller for demanding rental and fixed installation work. Its combination of flexible working modes, strong pixel loading capacity, and refined image processing make it a natural fit for stage productions, touring rental applications, and fine-pitch indoor LED installations.
