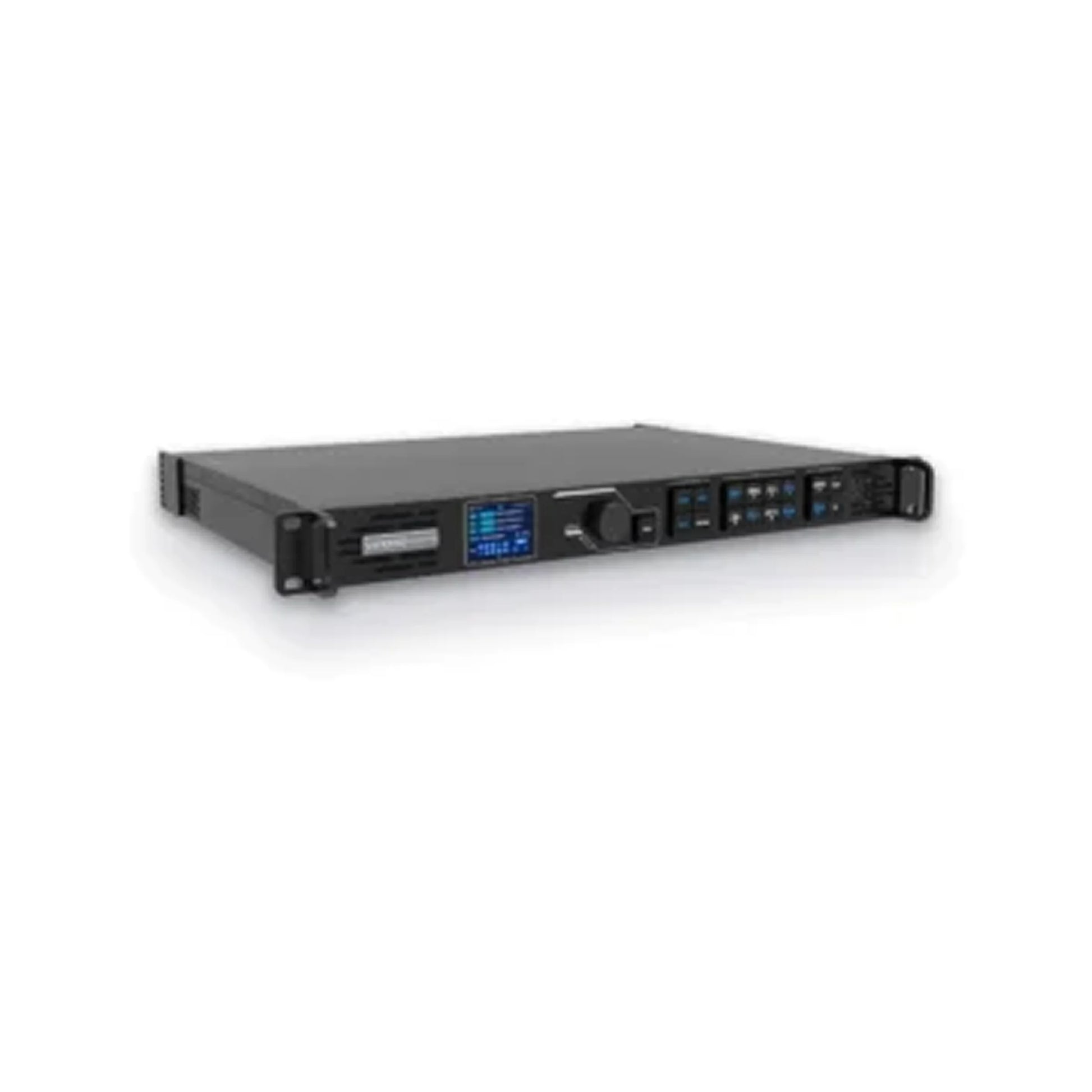

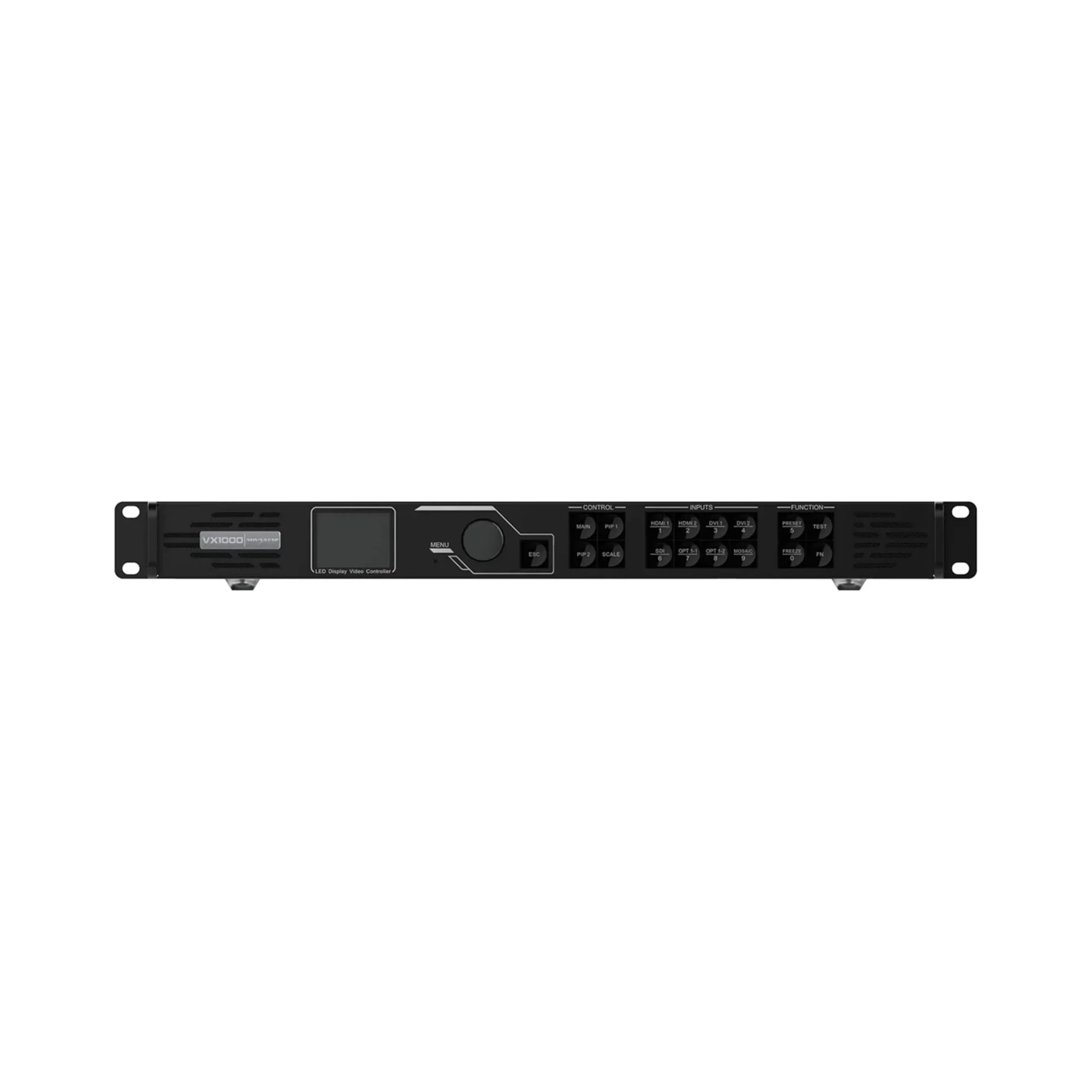

NovaStar VX1000 LED Display Controller

A Flagship All-in-One Controller for Large-Scale LED Screens

The NovaStar VX1000 All-in-One LED Video Controller is NovaStar's flagship all-in-one solution, conveniently integrating video processing, video control, and fiber conversion into a single box. Built for professional AV environments, the VX1000 is widely used in medium and high-end rental, stage control systems, and fine-pitch LED screen applications where reliable, high-capacity performance is essential.

Massive Loading Capacity for Ultra-Wide Screens

This controller is made for productions that need to drive genuinely large-format LED displays without stacking multiple devices. A single VX1000 unit can drive up to 6.5 million pixels, with a maximum output width of 10,240 pixels and height of 8,192 pixels, making it ideal for ultra-wide and ultra-high LED screen applications. The controller offers 10 Ethernet ports and supports three distinct working modes, Video Controller, Fiber Converter, and Bypass, giving integrators flexibility to adapt the device to diverse system architectures without additional equipment.

Powerful Video Processing and Image Quality

The VX1000 is capable of receiving a variety of professional video signals, including 3G-SDI and HDMI 1.4, and processing high-resolution 4K input at up to 60Hz. Built on NovaStar's SuperView III image quality processing technologies, it delivers stepless output scaling, one-click full-screen display, and free input cropping, along with output color management for brightness, saturation, contrast, and hue. Additional features like low latency, 3D support, and pixel-level brightness and chroma calibration work together to deliver a refined, consistent image display experience across the entire screen.

Streamlined Control and Field Operation

The VX1000 works seamlessly with NovaStar's NovaLCT and V-Can software, greatly facilitating in-field operations such as screen configuration, Ethernet port backup settings, layer management, preset management, and firmware updates. This integration into NovaStar's broader control ecosystem makes the VX1000 a natural fit for teams already standardized on NovaStar hardware and workflows.

Key Features at a Glance

• Product: NovaStar VX1000 All-in-One LED Video Controller
• Function: integrated video processing, video control, and fiber conversion
• Working modes: Video Controller, Fiber Converter, Bypass
• Maximum pixel loading capacity: up to 6.5 million pixels
• Maximum output resolution: 10,240 x 8,192 pixels
• Maximum input resolution: 4K (up to 4096 x 2160@60Hz, depending on configuration)
• Inputs: 3G-SDI, HDMI 1.4, plus additional professional video interfaces

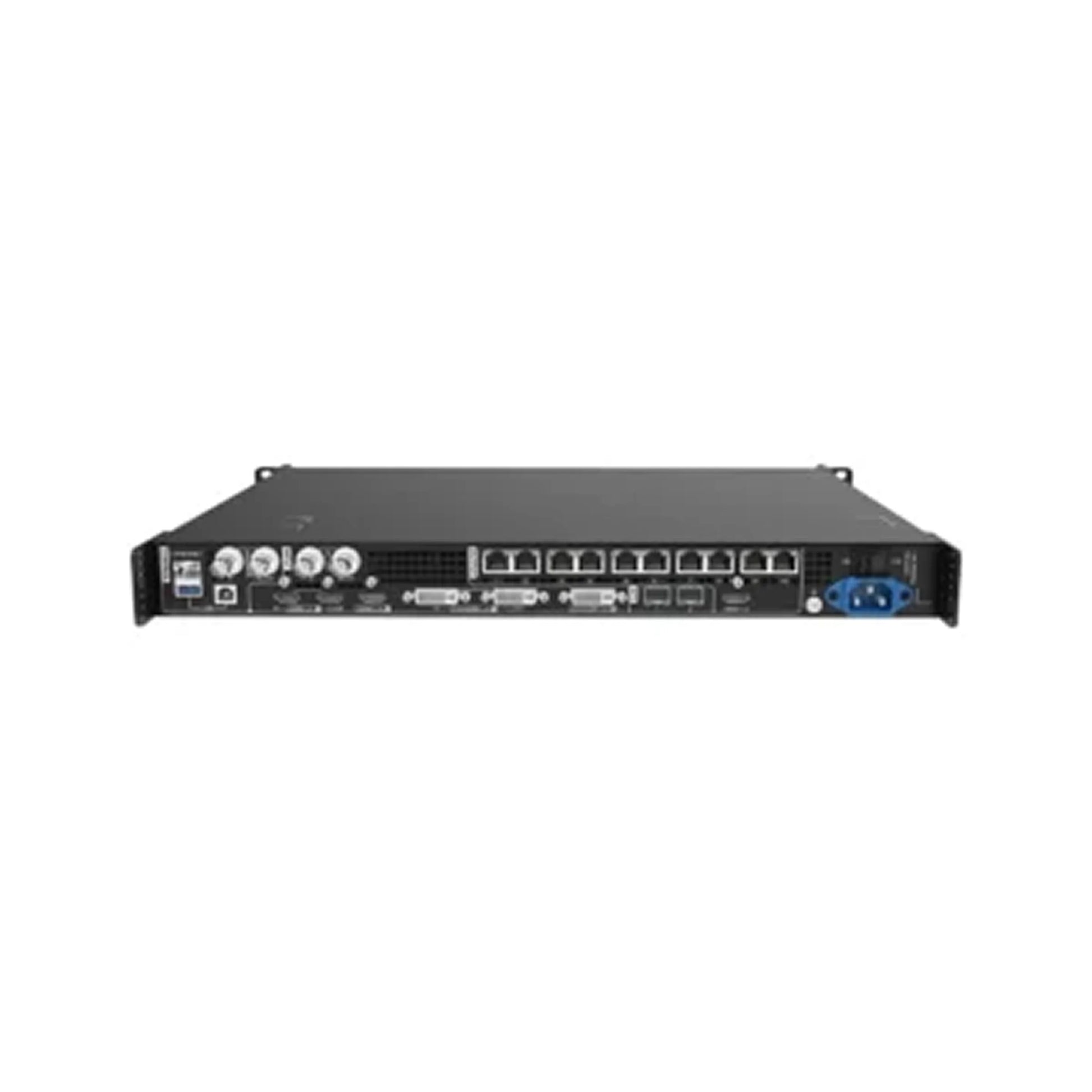

• Outputs: 10 Ethernet ports, supporting fiber optic long-distance transmission
• Layers: up to 3 x 4K1K layers (or 3 x 2K1K layers, depending on mode)
• Image quality: SuperView III processing, 3D support, pixel-level brightness and chroma calibration
• Control software: NovaStar NovaLCT and V-Can
• Best-fit applications: medium and high-end rental, stage control systems, fine-pitch LED screens

A Strong Choice for Stage, Rental, and Fine-Pitch LED Projects

The NovaStar VX1000 is a smart choice for AV professionals who need a single, powerful device to handle large-scale LED screen control without a rack full of separate equipment. Its combination of massive pixel loading capacity, flexible working modes, and advanced image processing make it a natural fit for touring productions, stage control systems, and fine-pitch LED installations.
