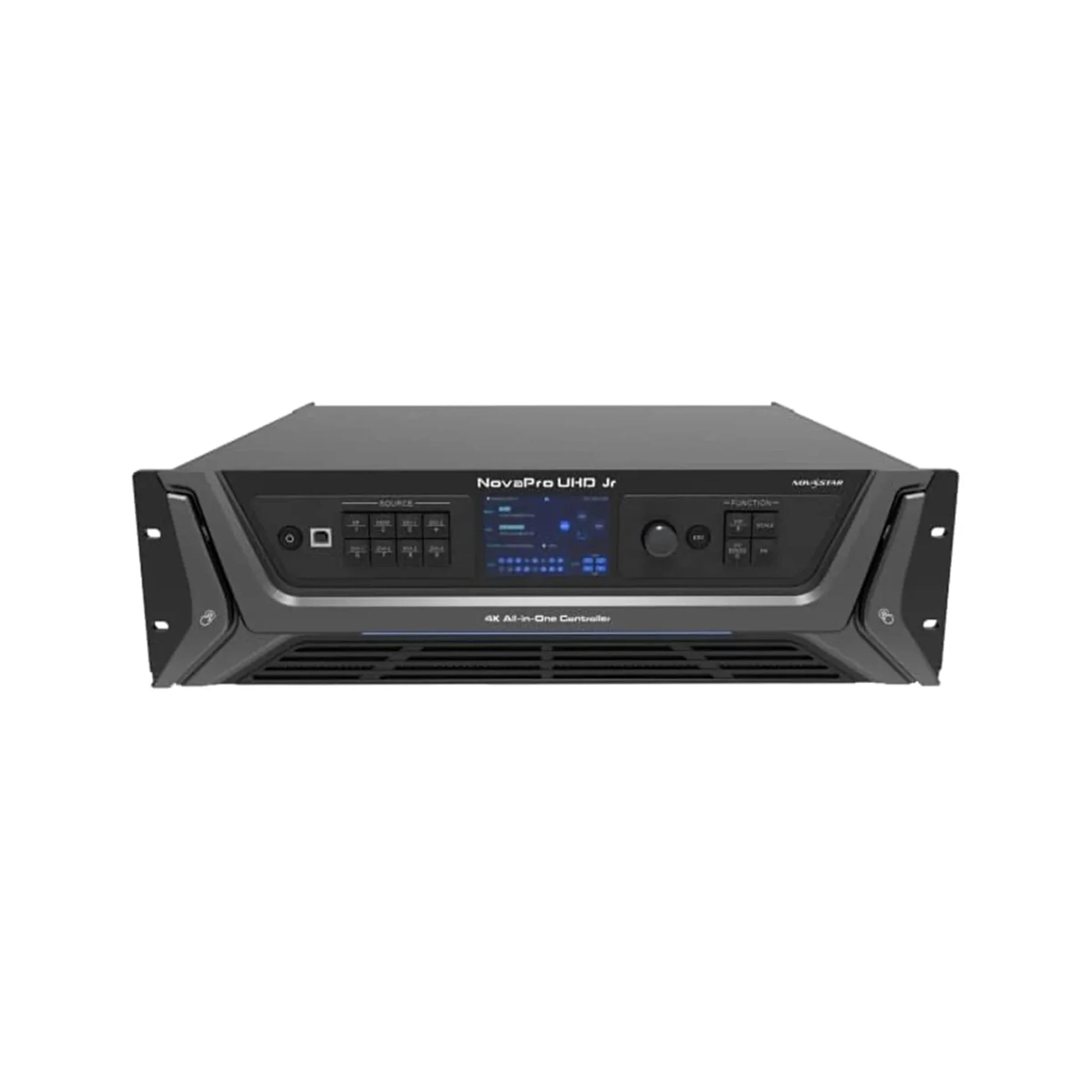

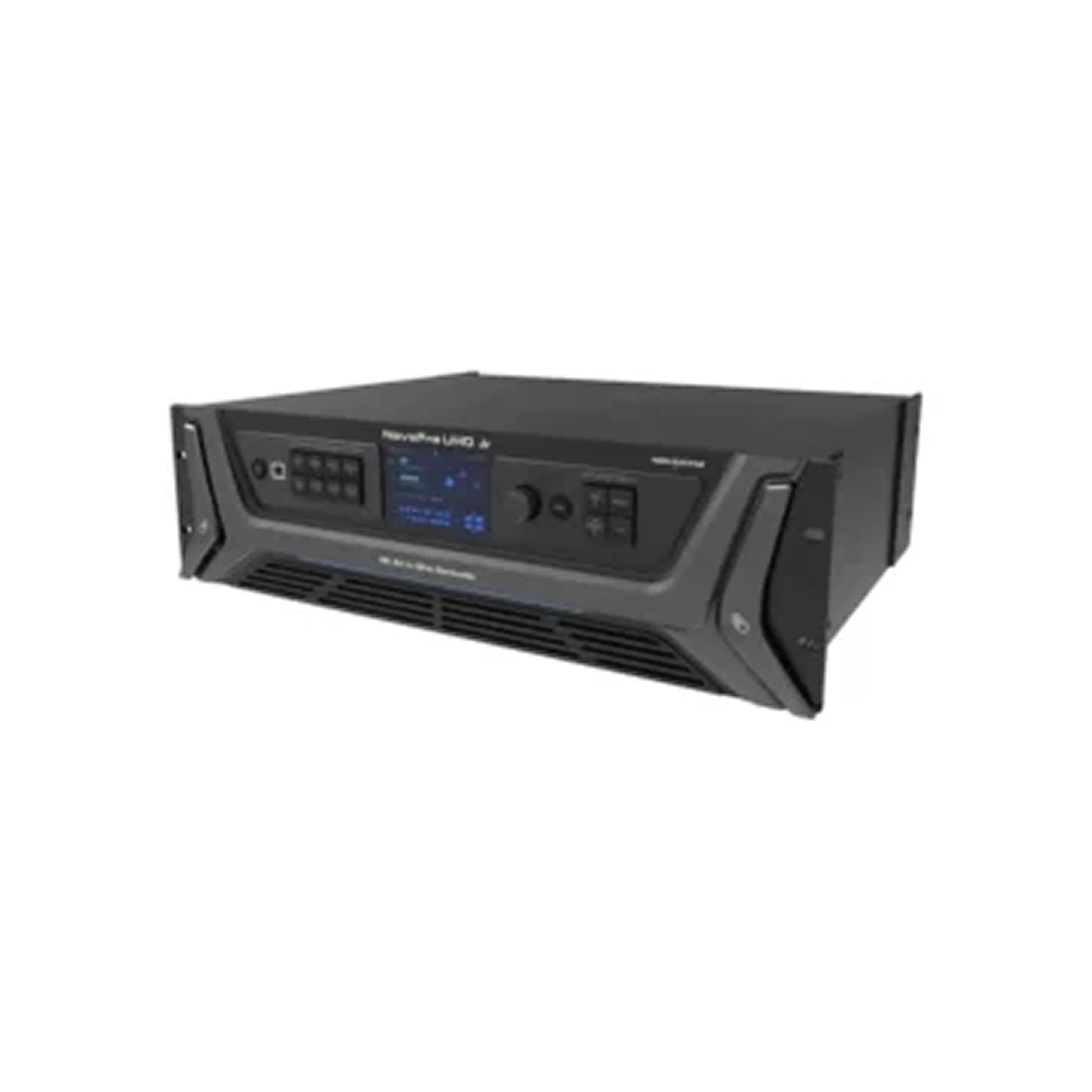

NovaStar NovaPro UHD Jr All-in-One 4K LED Video Wall Controller

A Complete All-in-One Solution for Professional LED Video Walls

The NovaStar NovaPro UHD Jr All-in-One 4K LED Video Wall Controller integrates video processing, scaler, and sending card functions into a single housing, designed for AV professionals who need reliable, high-resolution control for large LED display installations. Well suited to stage control systems, conference sites, exhibitions, and other high-end rental applications as well as fine-pitch LED displays, the UHD Jr eliminates the need for separate scalers or external computers to drive a video wall.

Powerful Video Processing in a Compact Chassis

This controller is made for productions that need dependable, ultra-high-definition video handling without a rack full of separate devices. It supports full HD 4K×2K@60Hz image processing and sending capabilities, along with ultra-high 8K×1K@60Hz resolution settings for wide-format displays. Housed in a rack-mountable 3U aluminum chassis, the unit accepts a wide variety of professional video signals and can combine up to four DVI input sources into a single mosaic image for flexible source management.

Extensive Connectivity for Large-Scale Displays

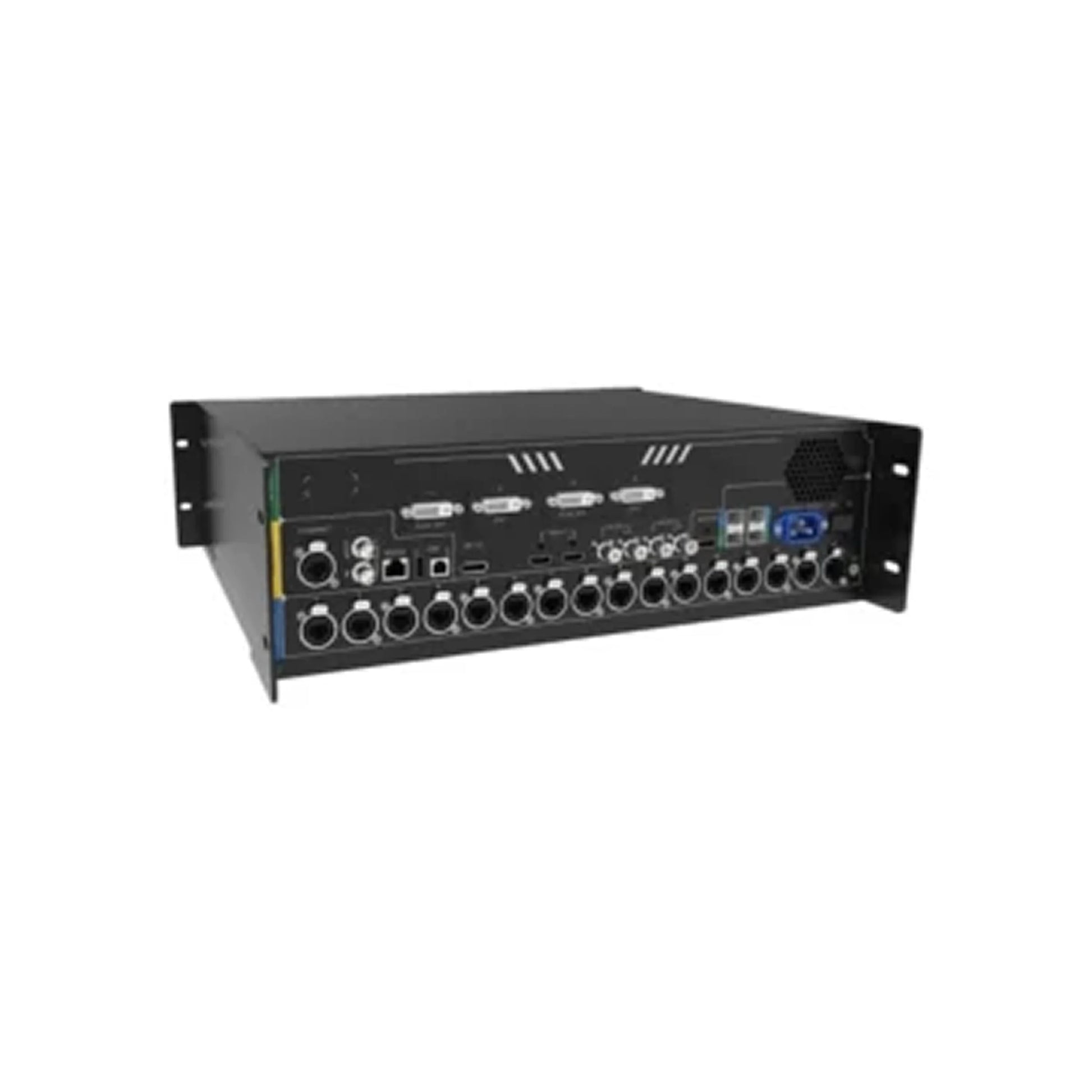

The UHD Jr provides a comprehensive set of inputs and outputs for demanding installations, including DisplayPort 1.2, DVI, HDMI 2.0, and 12G-SDI inputs with loop-through, alongside 16 Neutrik Ethernet outputs and 4 optical fiber outputs. This gives it a loading capacity of up to roughly 10.4 million pixels for a single unit, with support for image mosaic mode allowing up to four NovaPro UHD Jr units to be linked together for even larger screen configurations, expanding maximum width up to 16K.

Refined Image Quality and Smart Control

The controller supports HDR output for enhanced image clarity and vividness, along with customizable background settings, multiple image scaling modes, and a capture function for using input sources as backgrounds. When paired with NovaStar's V-Can smart control software, operators gain access to richer image mosaic effects and faster, easier day-to-day operation, along with up to 10 user presets that can be saved and recalled as templates for repeat setups.

Key Features at a Glance

• Product: NovaStar NovaPro UHD Jr All-in-One 4K LED Video Wall Controller
• Function: integrated video processor, scaler, and sending card
• Input resolution support: 4K×2K@60Hz, up to 8K×1K@60Hz
• Inputs: 1x DP 1.2, 4x DVI, 1x HDMI 2.0 (loop output), 2x 12G-SDI (loop output)
• Outputs: 16x Neutrik Ethernet, 4x optical fiber
• Pixel loading capacity: up to approx. 10.4 million pixels (single unit)
• Maximum resolution: up to 16384 x 8192 pixels (multi-unit mosaic)
• Image mosaic: up to 4 units linked for larger screens
• HDR support: yes, for enhanced image quality
• Control software: NovaStar V-Can
• Presets: up to 10 user-saved presets
• Power: AC 100V–240V, 50/60Hz
• Operating temperature: -10°C to 50°C
• Dimensions: 3U standard chassis, approx. 482.6 x 396.0 x 139.0mm
• Weight: approx. 6.3kg
• Max power consumption: 70W

A Strong Choice for Live Events, Rental, and Fixed Installation

The NovaStar NovaPro UHD Jr is a smart choice for AV professionals who need a dependable, all-in-one controller for high-resolution LED video walls. Its combination of extensive input/output connectivity, high pixel loading capacity, and smart mosaic capabilities make it a natural fit for stage productions, conference systems, exhibitions, and rental businesses working with fine-pitch LED displays.
