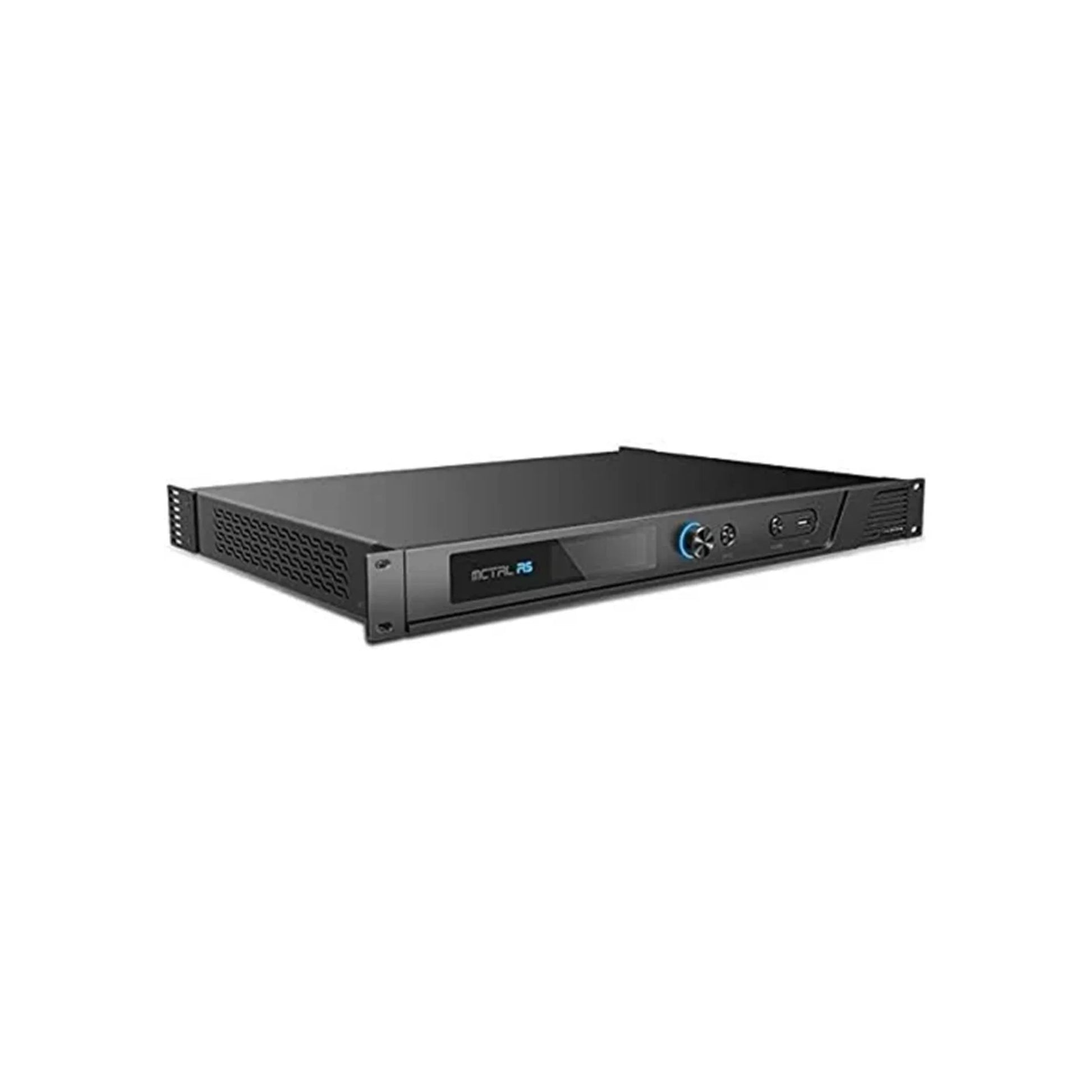

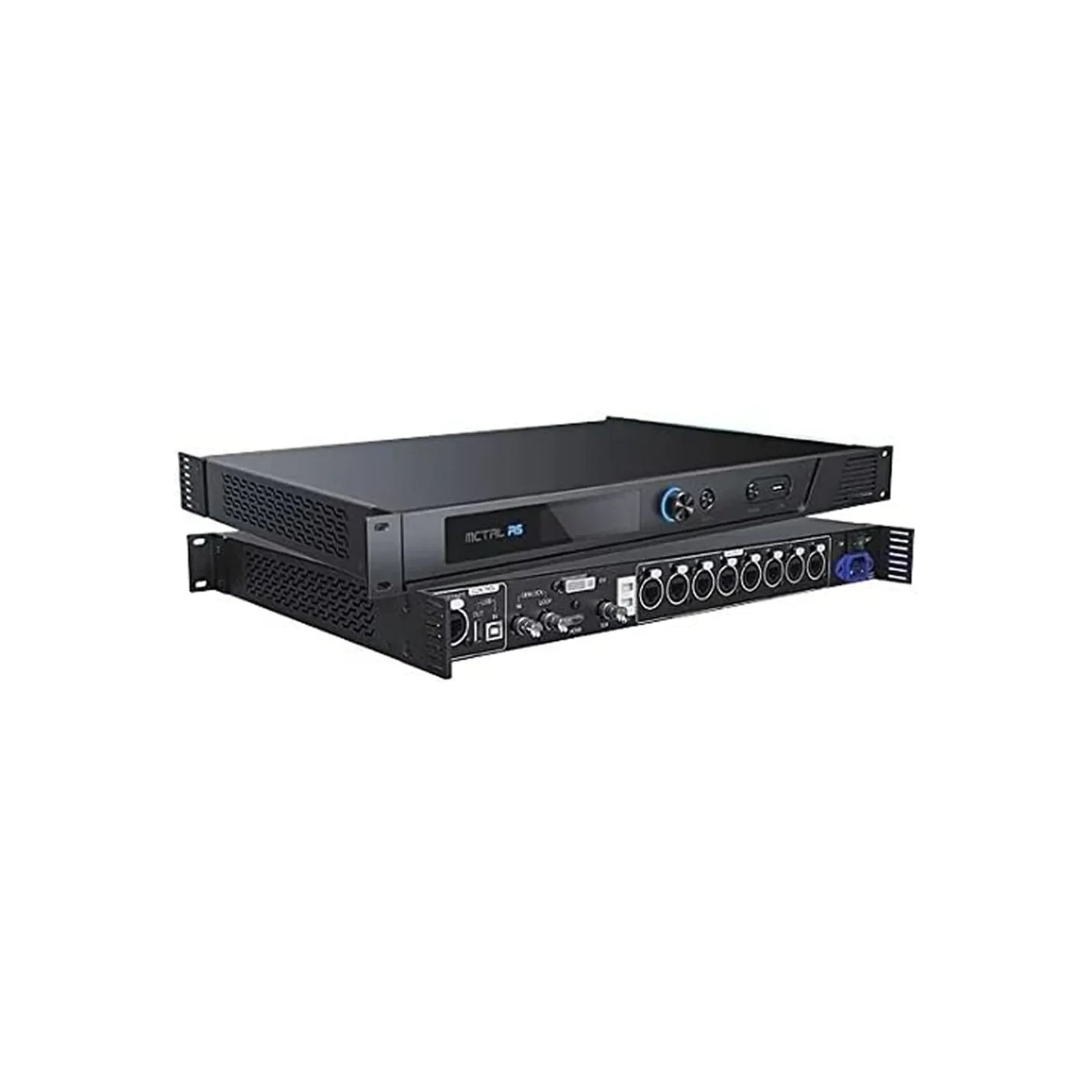

NovaStar MCTRL R5 LED Video Wall Sending Controller

The First Rotation-Capable LED Display Controller from NovaStar

The NovaStar MCTRL R5 LED Video Wall Sending Controller is a cost-effective, independent LED display controller designed for AV professionals who need reliable, high-loading-capacity video control for ultra-long or ultra-wide LED displays. As the first LED display controller from NovaStar to support display rotation, the MCTRL R5 opens up creative flexibility for fixed and rental installations alike.

Designed for Ultra-Wide and Custom Display Configurations

This controller is made for installations that demand non-standard screen shapes and sizes. It features a loading capacity of up to 3840×1080@60Hz, supporting any custom resolution within this capacity to meet on-site configuration requirements for extra-long or extra-large displays. Working together with NovaStar's A8s or A10s Plus receiving cards, the MCTRL R5 supports free screen configuration through NovaStar's SmartLCT software, allowing full rotation of the display at any angle to bring added visual diversity to installations.

Versatile Connectivity for Professional Video Sources

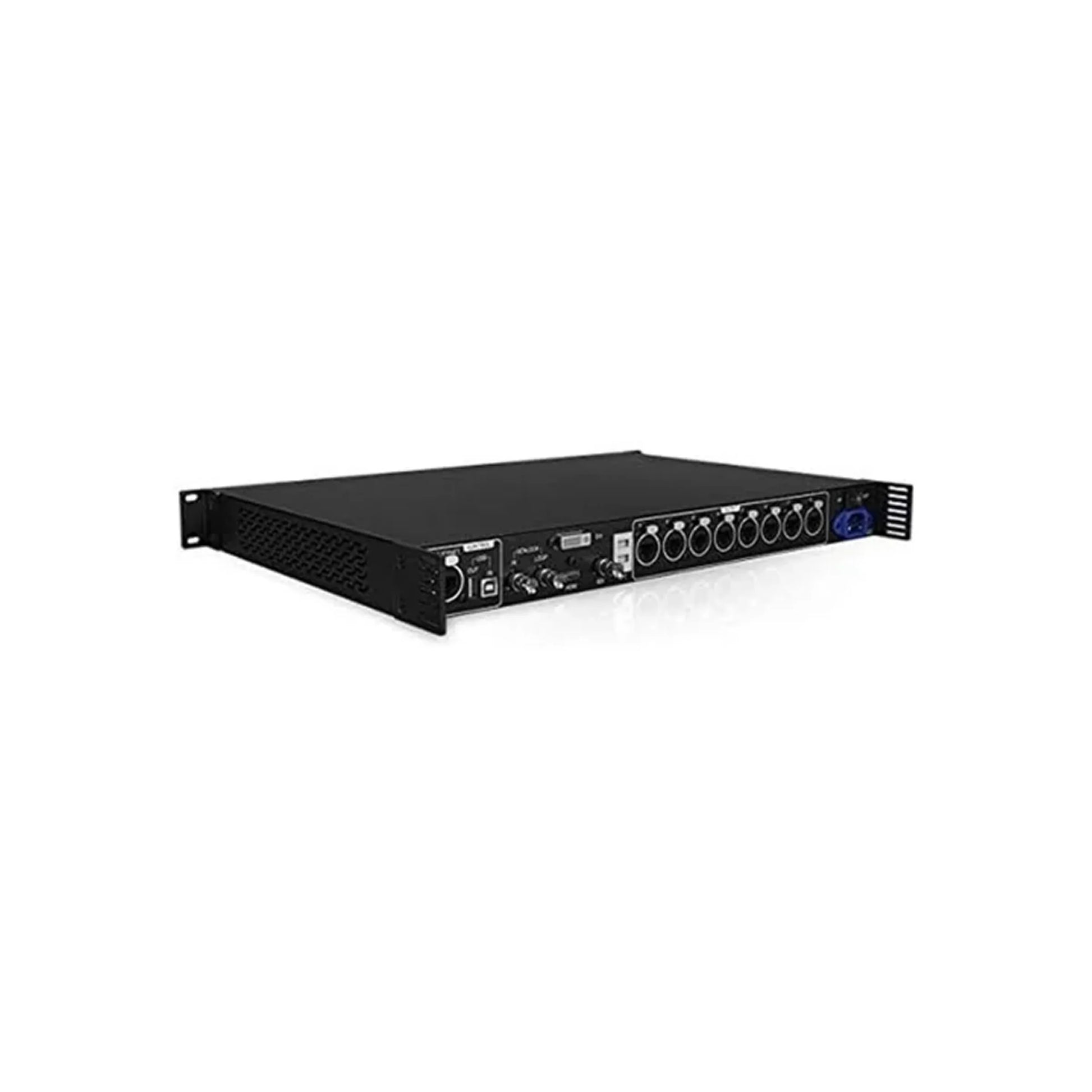

The MCTRL R5 accepts a variety of professional video sources, including Dual-Link DVI, HDMI 1.4, and 6G-SDI inputs, ensuring compatibility across different video formats commonly used in live production. On the output side, it provides 8 Ethernet output ports, with a maximum loading capacity of 650,000 pixels per port and a total loading capacity of up to roughly 5.2 million pixels, along with support for long-distance optical transmission of up to approximately 10 kilometers for more stable image delivery over greater distances.

Reliable Performance for Mission-Critical Applications

The controller supports redundancy between Ethernet ports, adding a layer of reliability that's especially valuable in mission-critical applications where any display downtime could have significant consequences. This combination of dependable connectivity and rotation support makes the MCTRL R5 well-suited to concerts, live events, monitoring centers, and major sporting events where consistent, high-quality display performance is essential.

Key Features at a Glance

• Product: NovaStar MCTRL R5 LED Display Controller
• Function: independent LED sending controller with display rotation
• Inputs: 1x Dual-Link DVI, 1x HDMI 1.4, 1x 6G-SDI
• Outputs: 8x Ethernet output ports
• Maximum loading capacity: 3840×1080@60Hz (single unit)
• Total pixel capacity: approx. 5.2 million pixels
• Max pixels per Ethernet output: 650,000 pixels
• Rotation support: full rotation at any angle (requires A8s or A10s Plus receiving card)
• Redundancy: supported between Ethernet ports
• Optical transmission distance: up to approx. 10km
• Control software: NovaStar SmartLCT
• Weight: approx. 4.3kg (9.47 lbs)
• Best-fit applications: concerts, live events, monitoring centers, sports venues, rental and fixed installations

A Strong Choice for Rental and Fixed LED Display Installations

The NovaStar MCTRL R5 is a smart choice for AV professionals who need a dependable, cost-effective controller for ultra-wide or rotated LED display configurations. Its combination of flexible input connectivity, strong pixel loading capacity, and industry-first rotation support make it a natural fit for concerts, live events, sports venues, and monitoring center installations.
