Reliable Long-Distance Signal Conversion for LED Display Systems
The NovaStar CVT10-M LED Display Multi-Mode Fiber Converter offers a cost-effective way to convert optical signals to electrical signals, or electrical signals to optical signals, for connecting a sending card to an LED display over long distances. Delivering full-duplex, efficient, and stable data transmission that's not easily interfered with, the CVT10-M is ideal for productions and installations where the sending card and display are separated by significant distance.
Designed for Practical On-Site Installation

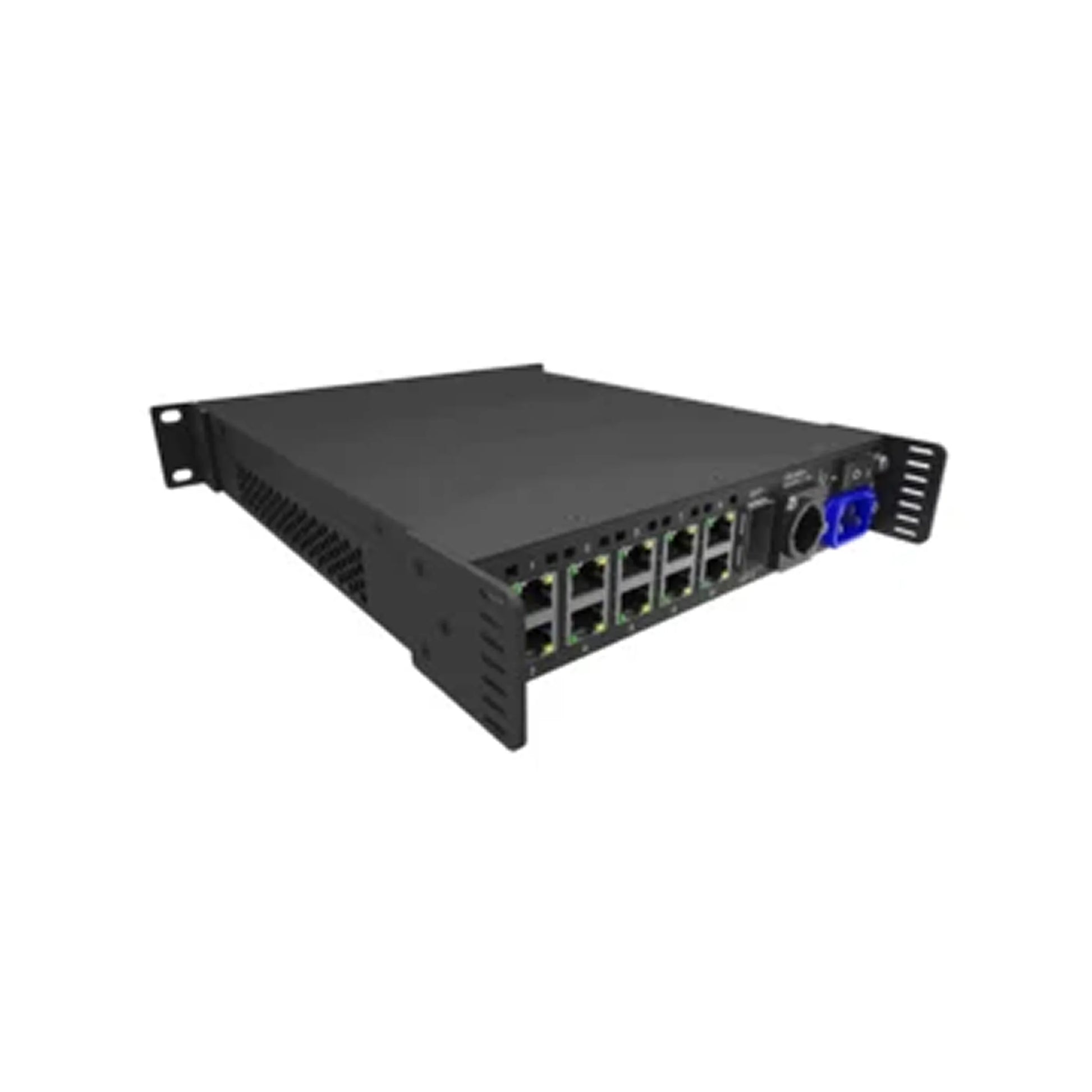

This converter is made for integrators who need flexible, reliable mounting options in the field. Its hardware design focuses on the practicality and convenience of on-site installation, supporting horizontal mounting, suspended mounting, or rack mounting, each easy, secure, and reliable. A single CVT10-M device is half a rack unit in width, and two devices, or one device paired with a connecting piece, can be combined into a single assembly that's a full rack unit wide, simplifying integration into standard AV racks.
Flexible Connectivity for Long-Distance Transmission

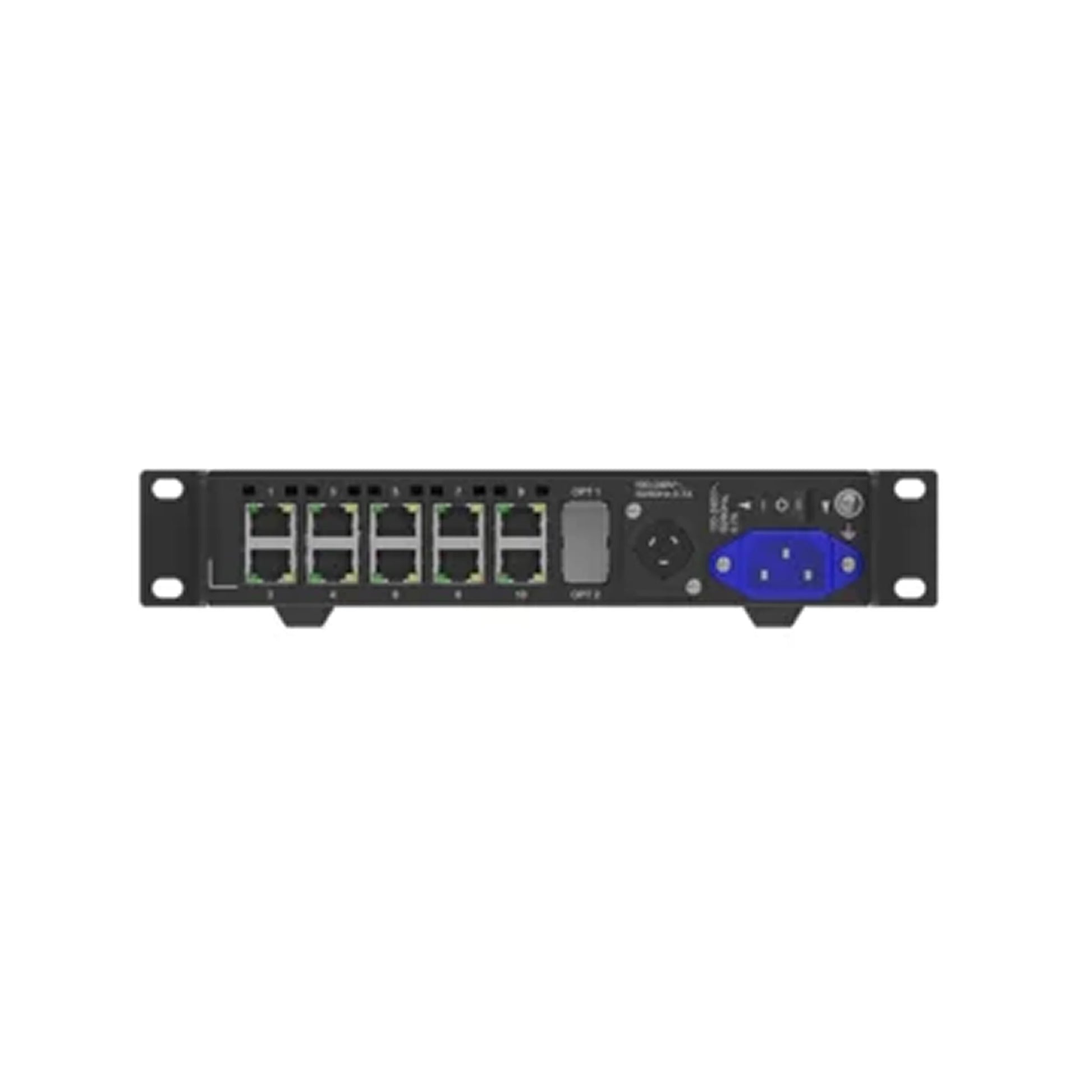

The CVT10-M features 2 optical ports with hot-swappable optical modules installed at the factory, each supporting bandwidth of up to 10 Gbit/s, alongside 10 Gigabit Ethernet ports each supporting up to 1 Gbit/s. When used with fiber in and Ethernet out, up to 8 Ethernet ports are available; when used with Ethernet in and fiber out, all 10 Ethernet ports are available, giving integrators flexibility in how they route signal depending on whether the sending card has optical ports.
Dependable Data Transmission
Using multi-mode optical technology with a transmission rate ranging from 9.95 to 11.3 Gbit/s and an 850nm wavelength, the CVT10-M supports transmission distances of up to 300 meters. This makes it a dependable choice for extending signal reach across large venues, stages, and installations where running a direct Ethernet connection isn't practical.
Key Features at a Glance
- Product: NovaStar CVT10-M Fiber Converter (Multi-Mode)
- Function: optical-to-electrical / electrical-to-optical signal conversion
- Optical ports: 2x, hot-swappable, up to 10 Gbit/s each
- Ethernet ports: 10x Gigabit (up to 1 Gbit/s each)
- Transmission rate: 9.95 to 11.3 Gbit/s
- Wavelength: 850nm
- Transmission distance: up to 300m
- Power connectors: 3-pin and PowerCON

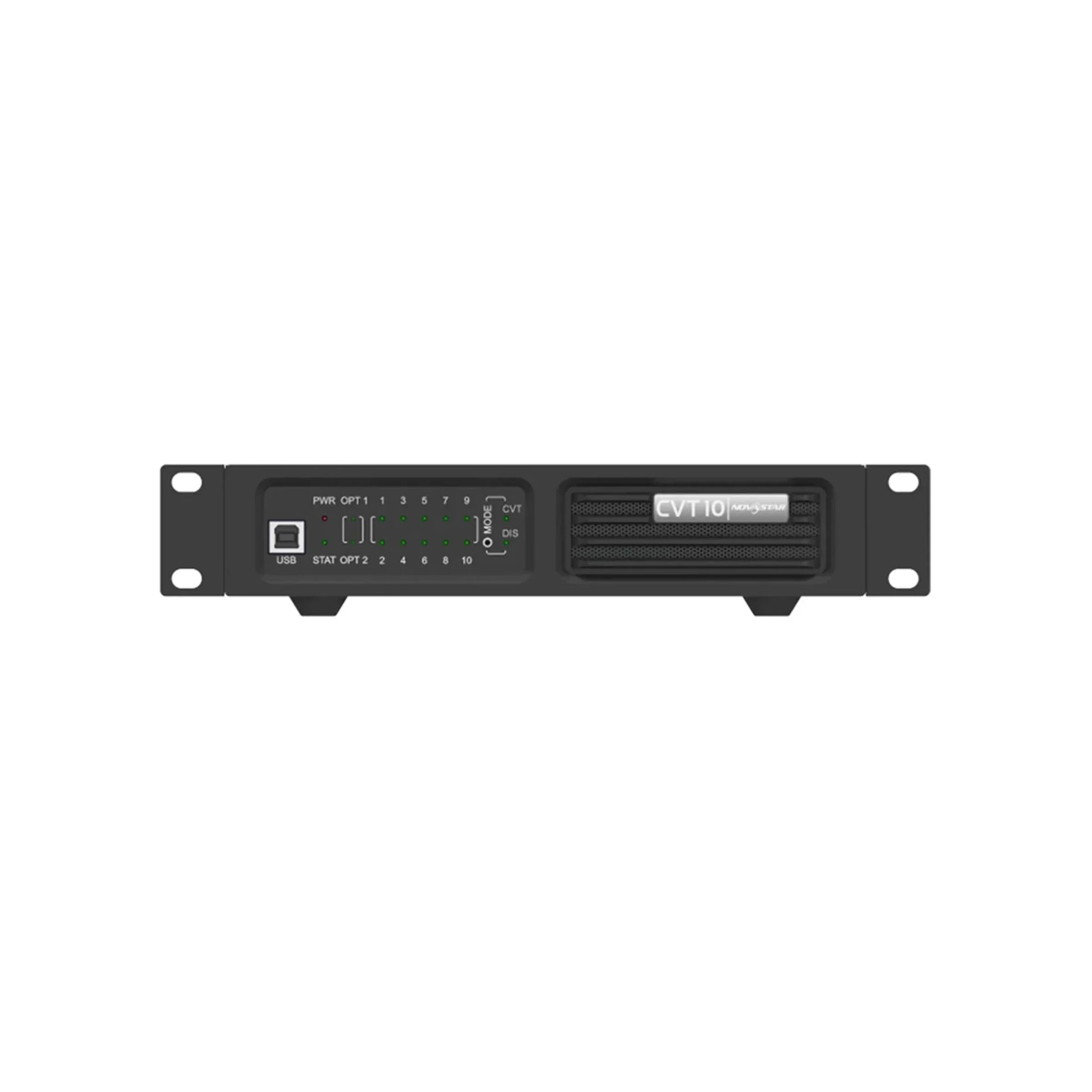

- Control: 1x USB Type-B control port
- Mounting: horizontal, suspended, or rack-mountable (half-1U per unit)
- Dimensions: approx. 10 x 11.5 x 1.8in
- Weight: approx. 4.7 lbs (2.1kg)
- Power input: 100-240V AC, 50/60Hz
A Strong Choice for Large-Venue and Long-Distance LED Installations
The NovaStar CVT10-M is a smart choice for integrators who need dependable, interference-resistant signal transmission over longer distances in LED display systems. Its combination of flexible mounting, high-bandwidth optical ports, and stable full-duplex transmission make it a natural fit for large stage productions, touring rental setups, and fixed installations spanning significant distances between the sending card and display.
