Fujitsu fi-7700 Production Scanner | 600 dpi | 100 ppm | 200 ipm Duplex | 300-Sheet ADF + Flatbed | PA03740-B005

Product Description:

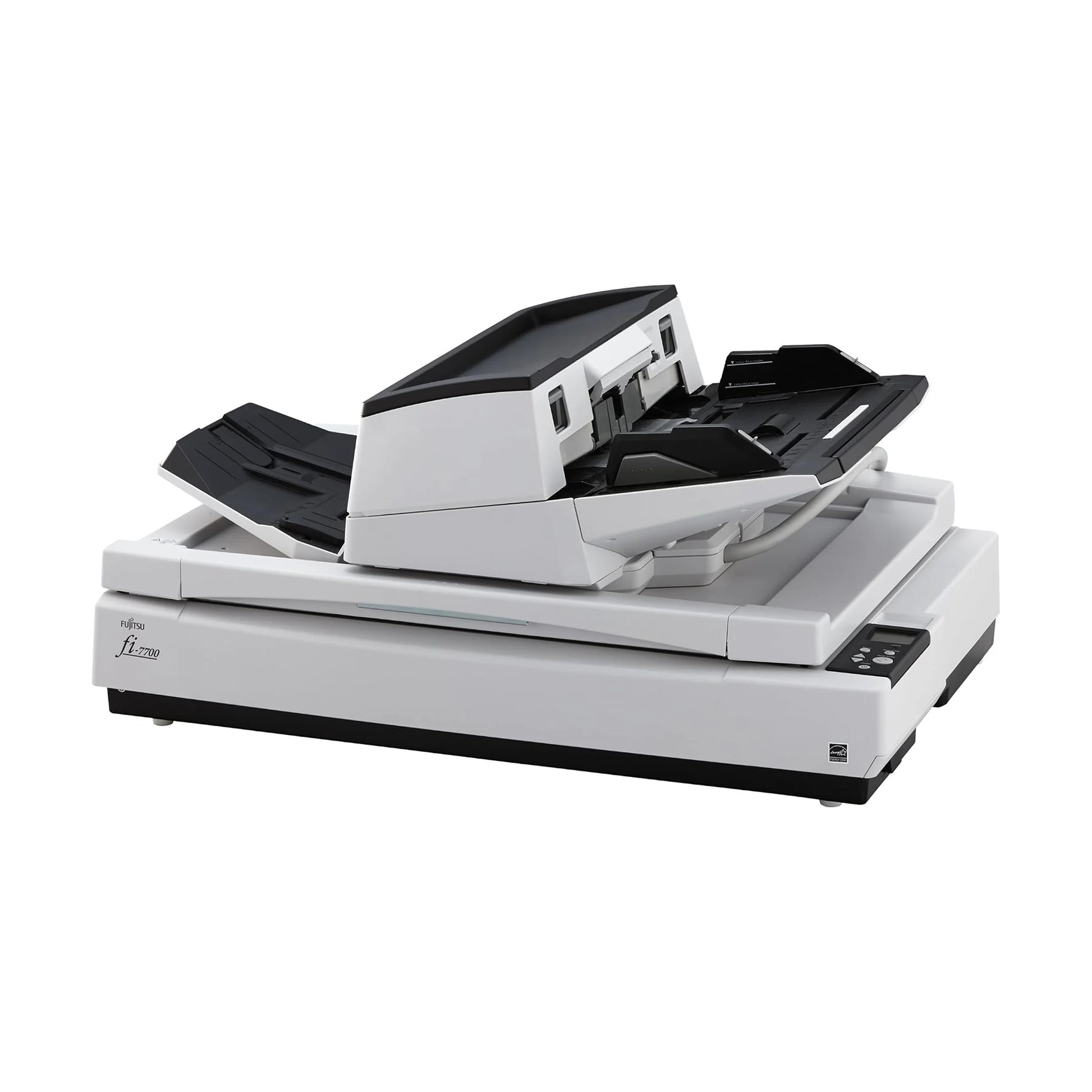

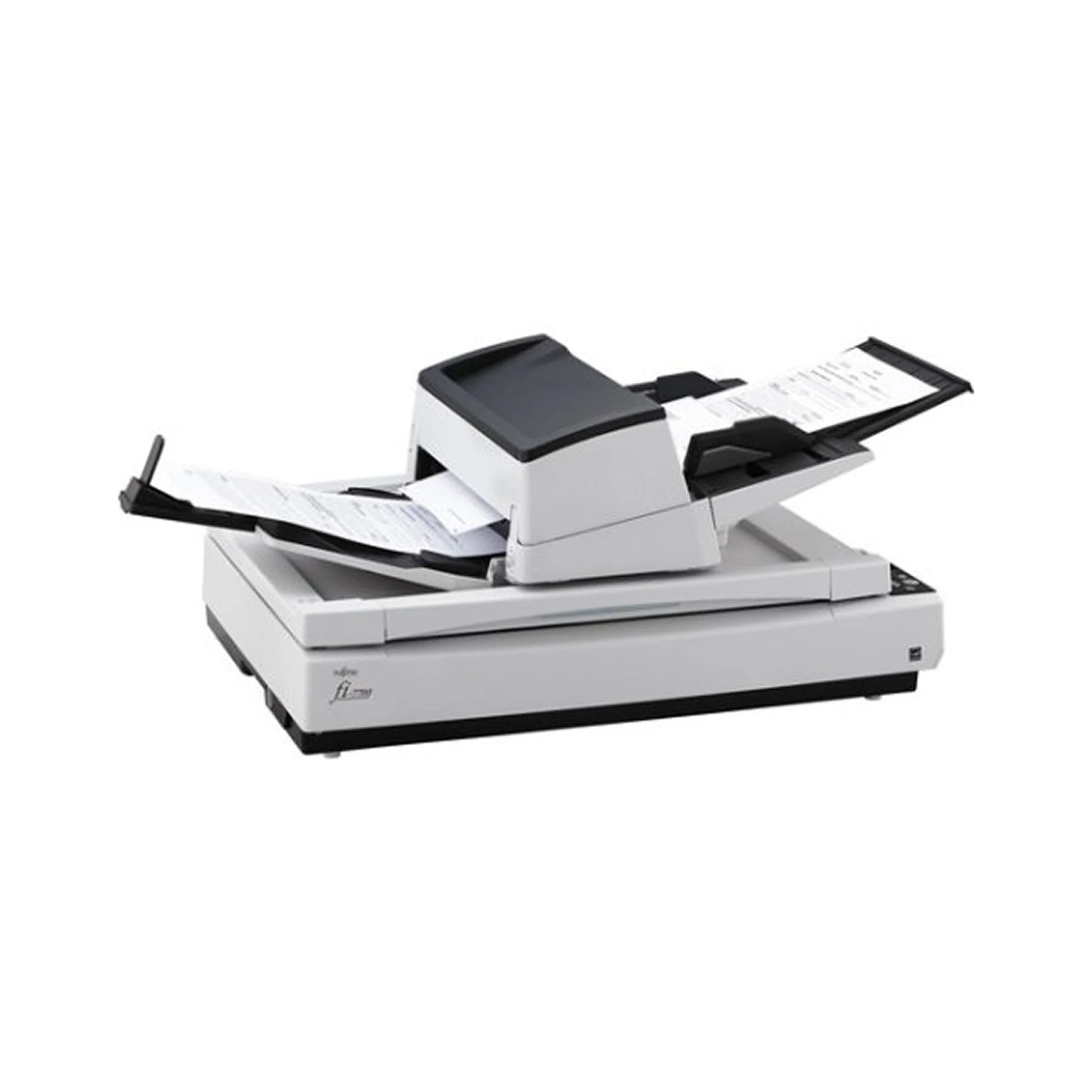

Fujitsu fi-7700 Production Document Scanner

The Fujitsu fi-7700 is a professional production-class document scanner designed for organisations that require high-speed, reliable and versatile document digitisation. Combining a powerful automatic document feeder with an integrated flatbed, the fi-7700 provides the flexibility to scan everything from standard office documents to bound, bulky and delicate materials.

With 600 dpi optical resolution and scanning speeds of up to 100 pages per minute / 200 images per minute in duplex mode, the fi-7700 is built for demanding document-processing environments.

Key Features

• 100 ppm / 200 ipm High-Speed Scanning – Rapidly processes large volumes of documents in both simplex and duplex modes.
• 600 dpi Optical Resolution – Captures sharp, detailed and professional-quality digital images.
• 300-Sheet Automatic Document Feeder – High-capacity ADF supports efficient batch scanning and continuous workflows.
• Integrated Flatbed Scanner – Ideal for bound books, bulky documents and materials that cannot be fed through the ADF.
• Duplex Scanning – Automatically scans both sides of a document in a single pass.
• USB 3.1 Gen 1 / USB 3.0 Connectivity – Fast and reliable connection to compatible computers and workstations.
• Wide Document Compatibility – Handles paper from 20–413 g/m², plastic cards up to 1.4 mm and long documents up to 5,588 mm.
• Intelligent Paper Protection – Includes ultrasonic multi-feed detection and Intelligent Sonic Paper Protection to help reduce the risk of document damage.
• Professional Image Processing – Supports functions such as de-skew, cropping, streak reduction, edge correction and long-page processing.

High-Speed Production Performance

The fi-7700 is engineered for high-volume document capture, delivering up to 100 ppm simplex and 200 ipm duplex at 200/300 dpi in A4 landscape orientation. This makes it well suited to organisations handling substantial volumes of documents every day.

Flexible ADF + Flatbed Design

Unlike a standard sheetfed scanner, the fi-7700 combines a 300-sheet ADF with a large flatbed, providing greater flexibility for different document types. The flatbed supports documents up to 12 × 18 inches, while the ADF supports documents up to 12 × 17 inches and long documents up to 220 inches.

Excellent Image Quality

With 600 dpi optical resolution, 24-bit colour output and advanced image-processing capabilities, the fi-7700 is designed to produce detailed and consistent digital documents for professional archiving and document-management applications.

Specifications:

Brand: Fujitsu
Model: fi-7700
Part Number: PA03740-B005
Scanner Type: ADF + Flatbed, Duplex
Optical Resolution: 600 dpi
Scanning Speed: Up to 100 ppm / 200 ipm
Duplex: Yes
ADF Capacity: 300 sheets
Flatbed: Yes
Maximum ADF Document Size: 12 × 17 in.
Maximum Flatbed Size: 12 × 18 in.
Long Page Scanning: Up to 5,588 mm / 220 in.
Paper Weight: 20–413 g/m²
Plastic Card Support: Up to 1.4 mm
Interface: USB 3.1 Gen 1 / USB 3.0 / USB 2.0 / USB 1.1
Output Resolution: 50–600 dpi; up to 1,200 dpi via driver
Image Sensor: Colour CCD × 3
Scanning Modes: Colour / Grayscale / Monochrome

A Powerful Professional Scanning Solution

The Fujitsu fi-7700 combines production-level speed, 600 dpi image quality, high-capacity paper handling and integrated flatbed versatility, making it an excellent choice for demanding professional document-capture environments.
