Product Description :

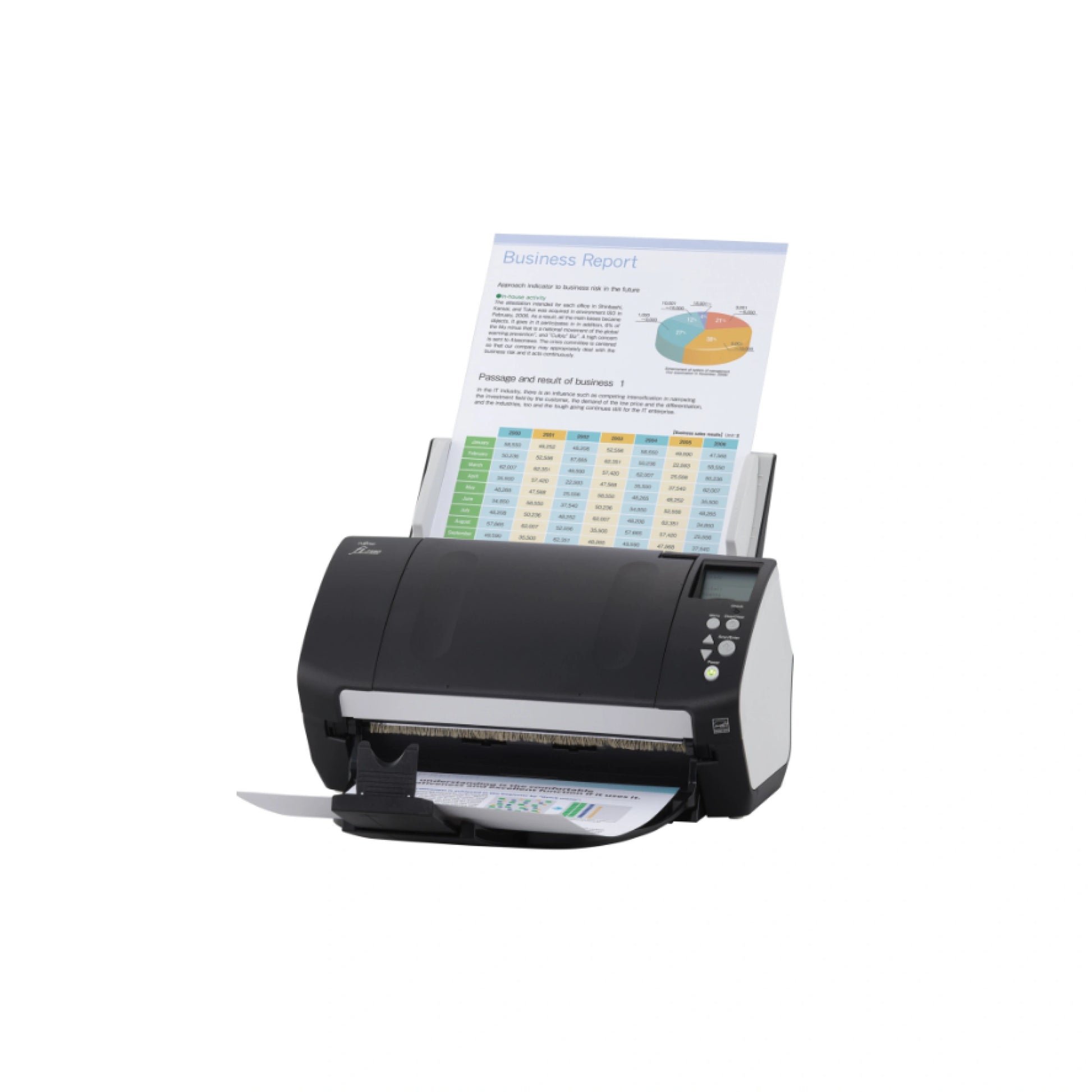

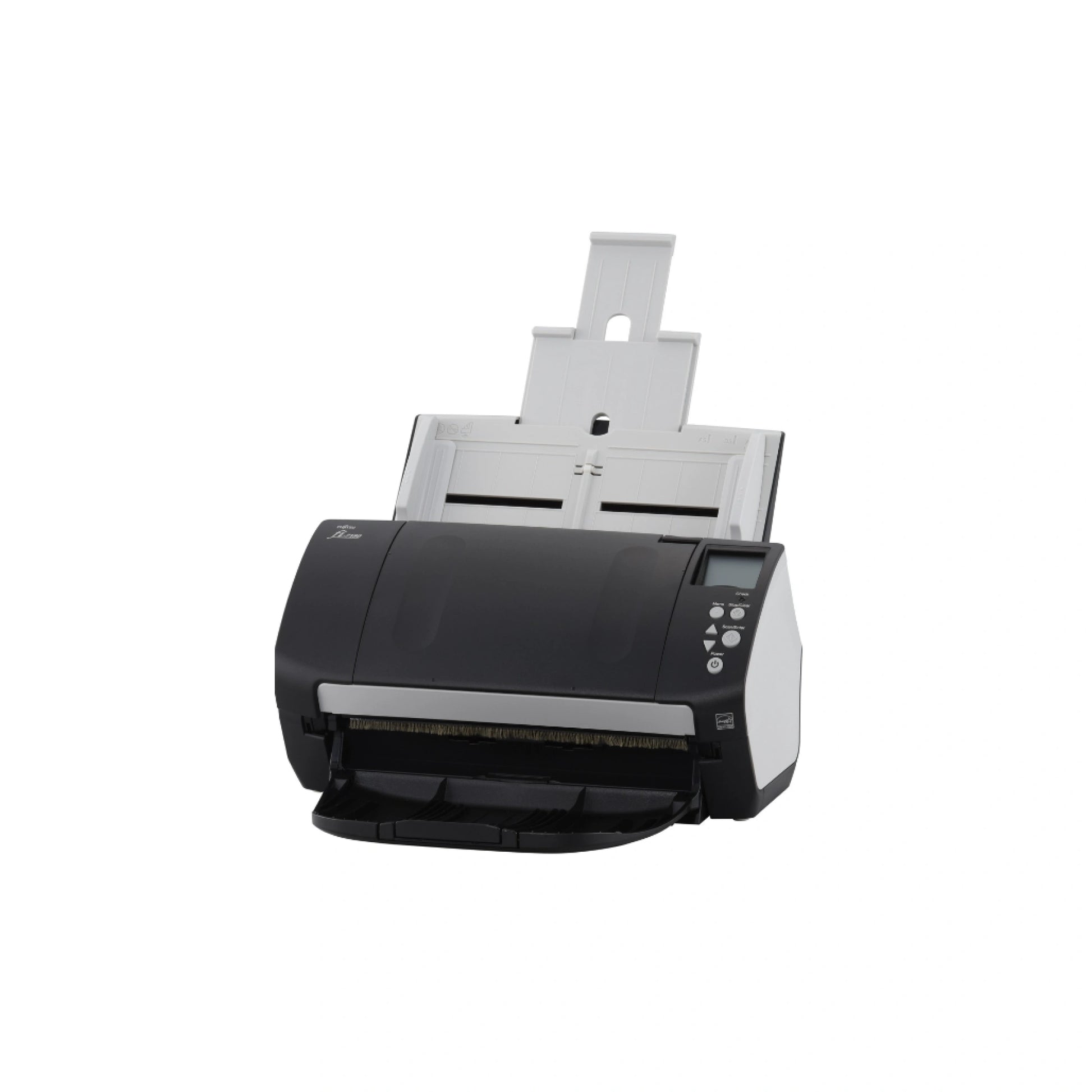

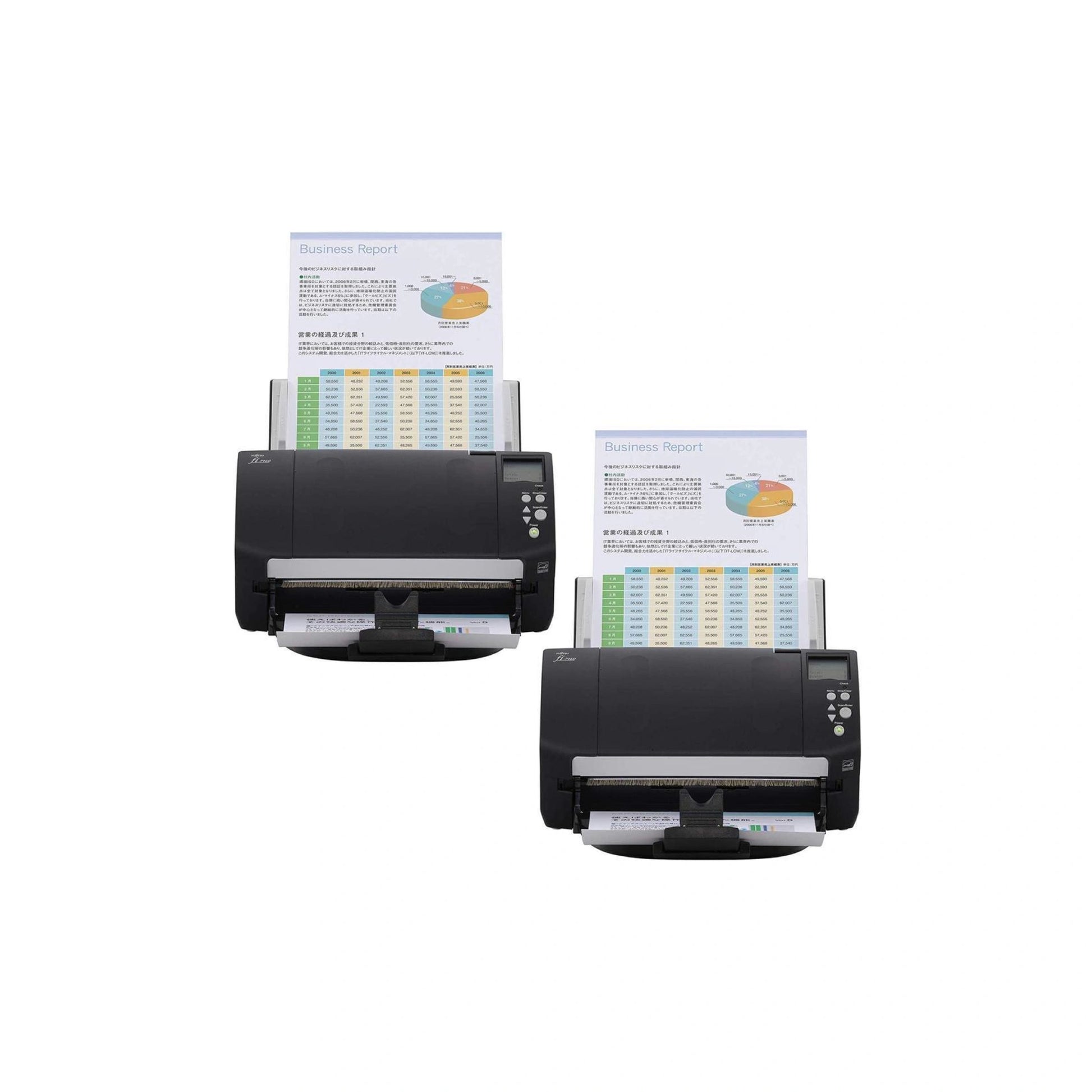

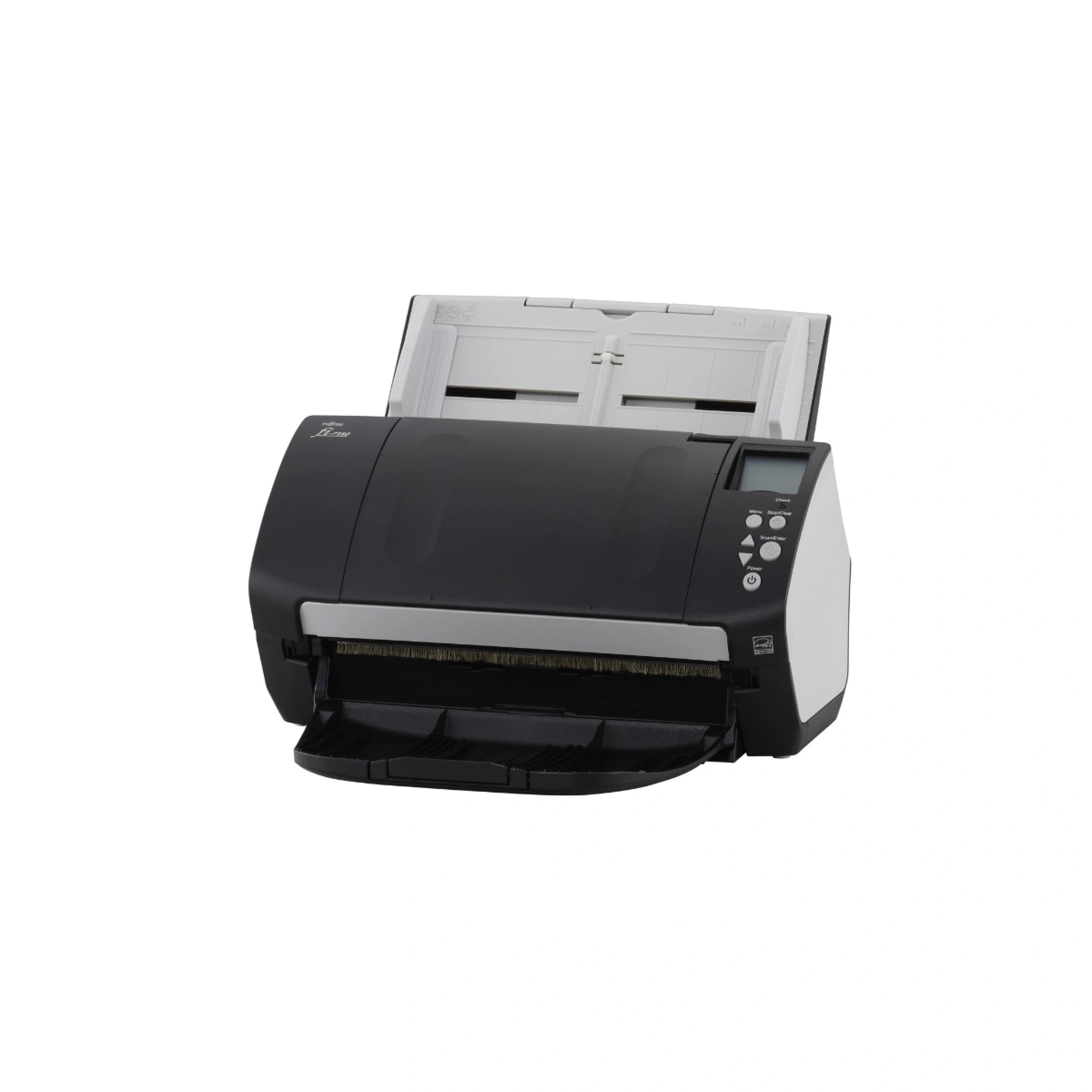

Fujitsu fi-7160 Color Duplex Document Scanner

The Fujitsu fi-7160 is a professional high-speed document scanner designed for businesses, offices and organisations that require fast, reliable and efficient document digitisation. With scanning speeds of up to 60 pages per minute (ppm) / 120 images per minute (ipm), the fi-7160 can efficiently process large volumes of documents while maintaining excellent image quality.

Featuring 600 dpi optical resolution, automatic duplex scanning and an 80-sheet Automatic Document Feeder (ADF), the scanner can capture both sides of a document in a single pass. Its compact desktop design, advanced paper protection and intelligent image-processing features make it well suited for demanding office scanning environments.

Key Features

• Brand: Fujitsu
• Model: fi-7160
• Part Number: PA03670-B085-2
• Scanner Type: Professional ADF Document Scanner
• Scanning: Duplex – scans both sides simultaneously
• Scanning Speed: Up to 60 ppm / 120 ipm
• Optical Resolution: 600 dpi
• ADF Capacity: Up to 80 sheets
• Scanning Modes: Colour, Grayscale and Monochrome
• Image Sensor: Dual Colour CCD
• Interface: USB 3.0 / USB 2.0 / USB 1.1
• Maximum Document Size: 216 × 355.6 mm
• Long Document Scanning: Up to 5,588 mm
• Plastic Card Support: Up to 1.4 mm thickness
• Expected Daily Volume: Up to 9,000 sheets
• Dimensions: Approx. 300 × 170 × 163 mm
• Weight: Approx. 4.2 kg

High-Speed Duplex Scanning

The fi-7160 is designed for fast document processing, delivering speeds of up to 60 ppm / 120 ipm at 200 or 300 dpi. Its duplex capability automatically scans both sides of a page in one pass, helping businesses reduce scanning time and improve productivity.

80-Sheet Automatic Document Feeder

The built-in 80-sheet ADF allows users to load a large batch of documents and scan them continuously. Additional documents can also be added while scanning, making the scanner suitable for longer document-processing sessions.

High-Quality 600 dpi Scanning

With 600 dpi optical resolution, the fi-7160 captures clear and detailed digital images. It supports colour, grayscale and monochrome scanning, making it suitable for a wide variety of business documents, forms, invoices, receipts and records.

Reliable Paper Handling

The fi-7160 includes features designed to improve document-feeding reliability and protect original documents. Its Skew Reducer helps keep pages aligned, while Paper Protection helps detect potential paper problems before documents are damaged.

The scanner also features ultrasonic multi-feed detection, helping identify overlapping pages and reducing the risk of missing information during batch scanning.

Advanced Image Processing

The fi-7160 works with Fujitsu's PaperStream IP image-processing software and PaperStream Capture, providing tools designed to improve scanned-document quality and streamline professional scanning workflows.

Additional software options include PaperStream ClickScan for straightforward everyday scanning.

USB 3.0 Connectivity

The scanner supports USB 3.0, USB 2.0 and USB 1.1, allowing it to connect easily to compatible desktop and office computer systems. USB 3.0 provides fast data transfer for efficient scanning workflows.

Long Document & Card Scanning

The fi-7160 can handle documents up to 216 × 355.6 mm and supports long-paper scanning up to approximately 5,588 mm when using supported settings.

It can also scan plastic cards up to approximately 1.4 mm thick, making it useful for offices that need to digitise identification cards, business cards and other compatible card media.

Product Specifications

Brand: Fujitsu
Model: fi-7160
Part Number: PA03670-B085-2
Product Type: Professional Document Scanner
Scanner Technology: ADF / Sheet-fed
Scanning: Single-sided & Duplex
Scanning Speed: Up to 60 ppm / 120 ipm
Optical Resolution: 600 dpi
ADF Capacity: 80 sheets
Image Sensor: Colour CCD × 2
Output: 24-bit Colour / 8-bit Grayscale / 1-bit Monochrome
Interface: USB 3.0 / USB 2.0 / USB 1.1
Maximum Document Size: 216 × 355.6 mm
Long Document: Up to 5,588 mm
Plastic Card Thickness: Up to 1.4 mm
Expected Daily Volume: Up to 9,000 sheets
Dimensions: 300 × 170 × 163 mm
Weight: Approx. 4.2 kg
