Product Description :

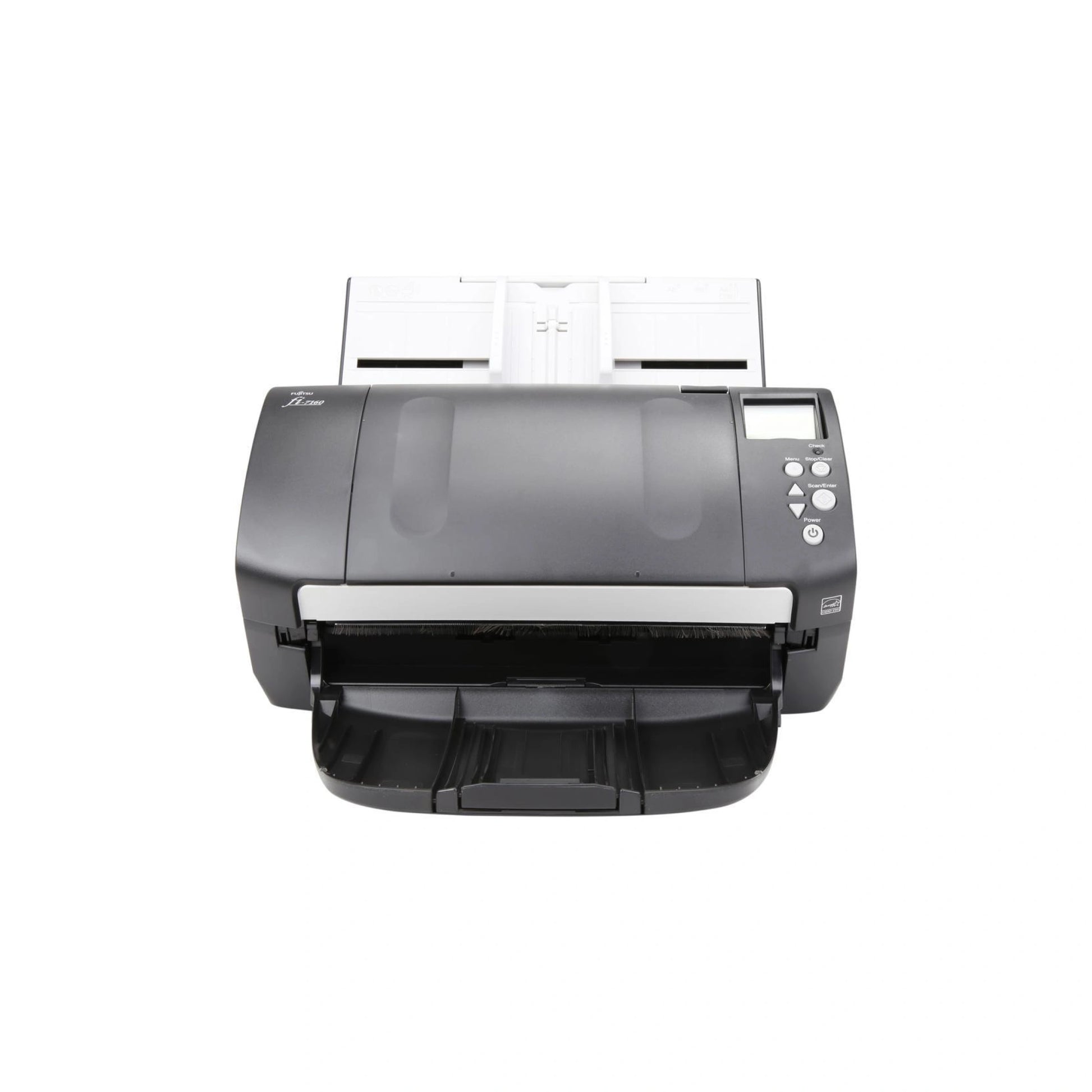

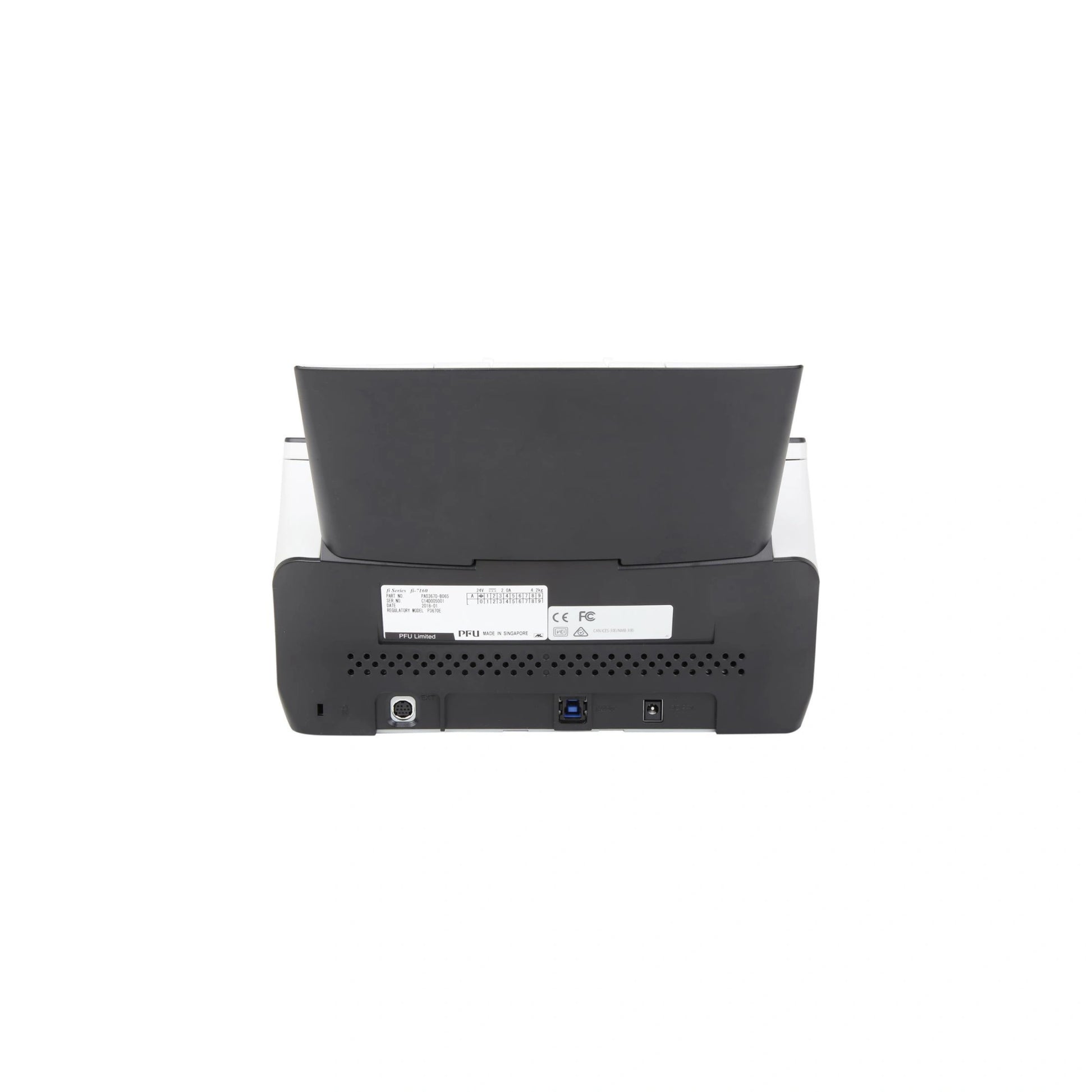

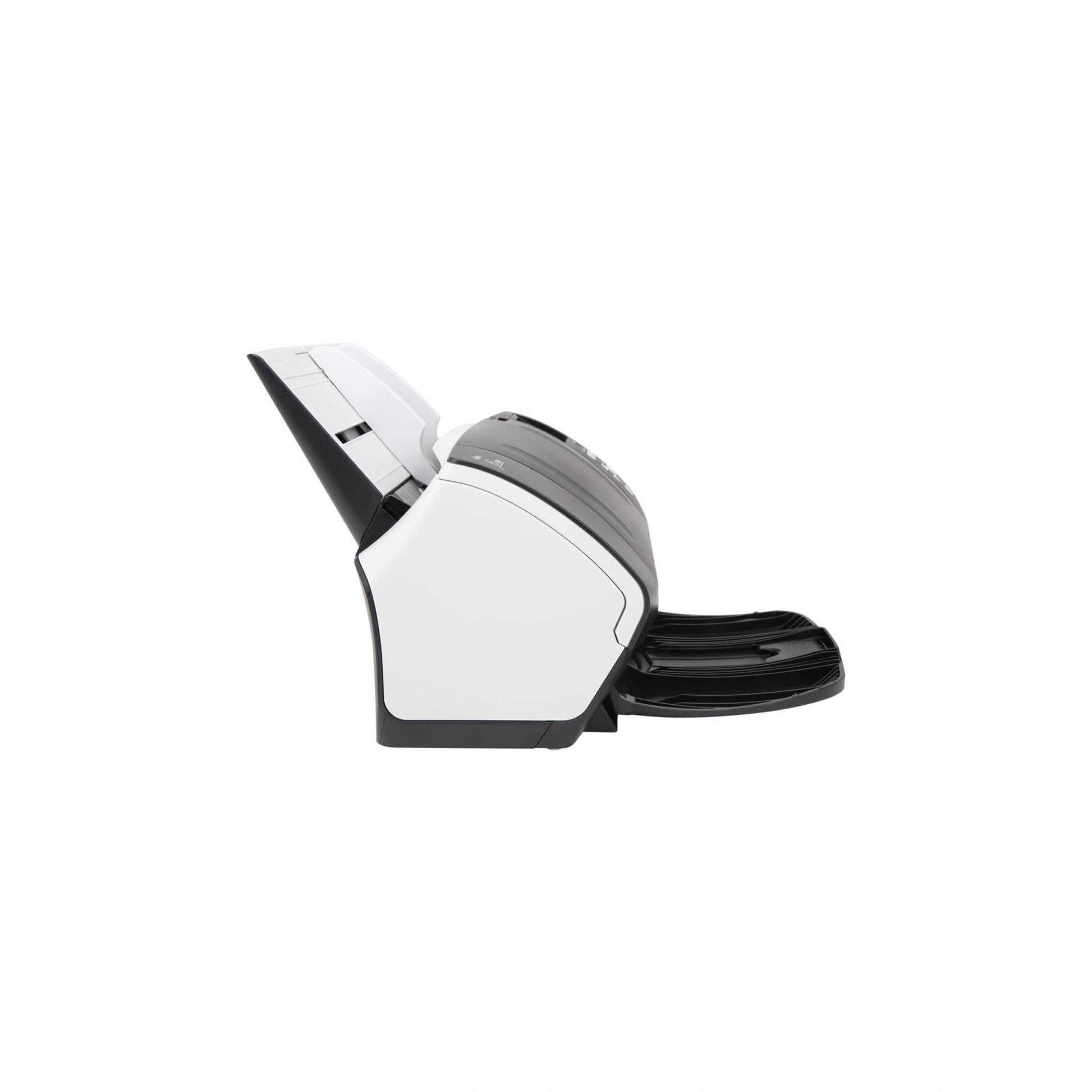

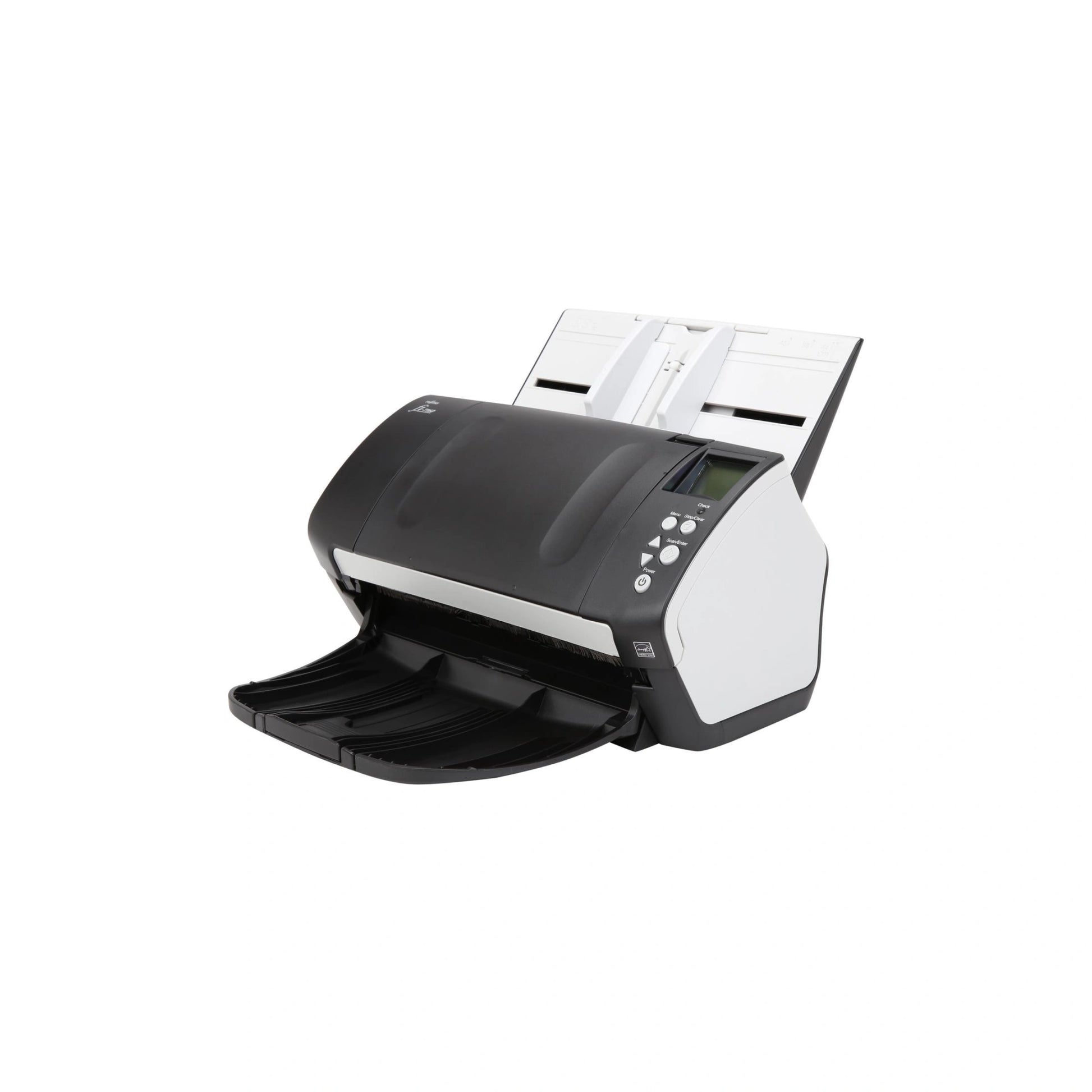

Fujitsu fi-7160 Professional Color Duplex Document Scanner

The Fujitsu fi-7160 is a professional high-speed document scanner designed for businesses, offices and organisations that require fast, reliable and efficient document digitisation. With scanning speeds of up to 60 pages per minute (ppm) / 120 images per minute (ipm), the fi-7160 is capable of processing large volumes of documents quickly while maintaining excellent image quality.

Featuring 600 dpi optical resolution, automatic duplex scanning and an 80-sheet Automatic Document Feeder (ADF), the scanner can capture both sides of a document in a single pass. Its compact desktop design and advanced paper-handling technology make it an excellent choice for professional document management and high-volume office workflows.

Key Features

• Brand: Fujitsu
• Model: fi-7160
• Part Number: PA03670-B065
• Product Type: Professional ADF Document Scanner
• Scanning: Colour, Grayscale & Monochrome
• Scanning Mode: Simplex & Duplex
• Scanning Speed: Up to 60 ppm / 120 ipm
• Optical Resolution: 600 dpi
• ADF Capacity: Up to 80 sheets
• Image Sensor: Dual Colour CCD
• Interface: USB 3.0 / USB 2.0 / USB 1.1
• Expected Daily Volume: Up to 9,000 sheets
• Maximum Document Size: 216 × 355.6 mm
• Long Document Scanning: Up to 5,588 mm
• Plastic Card Support: Up to 1.4 mm thickness
• Dimensions: Approx. 300 × 170 × 163 mm
• Weight: Approx. 4.2 kg

High-Speed Duplex Scanning

The fi-7160 provides scanning speeds of up to 60 ppm / 120 ipm at 200 or 300 dpi. Its automatic duplex function scans both sides of a document simultaneously, helping businesses digitise multi-page documents quickly and efficiently.

80-Sheet Automatic Document Feeder

The integrated 80-sheet ADF allows users to load a substantial batch of documents and scan them continuously. This reduces manual feeding and helps improve productivity during larger scanning jobs.

The scanner supports paper weights from approximately 27 to 413 g/m², providing flexibility for different types of office documents.

High-Quality 600 dpi Scanning

With 600 dpi optical resolution, the fi-7160 produces detailed digital images suitable for professional document archiving and processing.

It supports 24-bit colour, 8-bit grayscale and 1-bit monochrome output, allowing users to select the appropriate scanning mode for different document types.

Reliable Paper Handling

The fi-7160 incorporates several technologies designed to improve document-feeding reliability. Skew Reducer helps keep documents properly aligned, while Paper Protection helps protect originals from potential damage.

Its ultrasonic multi-feed detection can detect overlapping pages, helping reduce the risk of pages being missed during batch scanning.

Advanced Image Processing

The scanner supports advanced image-processing functions including:

• Automatic colour detection
• Blank-page detection
• Automatic de-skew
• Dynamic threshold processing
• Dropout colour
• Hole-punch removal
• Cropping
• Split-image processing
• Vertical streak reduction
• Moiré removal
• Multi-image output

Long Document & Plastic Card Scanning

The fi-7160 supports documents up to 216 × 355.6 mm and can scan long documents up to approximately 5,588 mm under supported settings.

It can also handle plastic cards up to approximately 1.4 mm thick, making it suitable for offices that need to digitise cards and other specialised documents.

Professional Software Support

The fi-7160 is designed to work with Fujitsu/PFU professional scanning software, including PaperStream IP and PaperStream Capture. These tools provide advanced image processing and document-capture features for professional scanning workflows.

Product Specifications

Brand: Fujitsu
Model: fi-7160
Part Number: PA03670-B065
Product Type: Professional Color Document Scanner
Scanner Type: ADF / Sheet-fed
Scanning: Simplex & Duplex
Scanning Speed: Up to 60 ppm / 120 ipm
Optical Resolution: 600 dpi
ADF Capacity: 80 sheets
Image Sensor: Color CCD × 2
Output: 24-bit Colour / 8-bit Grayscale / 1-bit Monochrome
Interface: USB 3.0 / USB 2.0 / USB 1.1
Maximum Document Size: 216 × 355.6 mm
Long Paper Scanning: Up to 5,588 mm
Plastic Card Support: Up to 1.4 mm
Expected Daily Volume: Up to 9,000 sheets
Dimensions: Approx. 300 × 170 × 163 mm
Weight: Approx. 4.2 kg

Product Summary

The Fujitsu fi-7160 combines 60 ppm / 120 ipm high-speed duplex scanning, 600 dpi optical resolution, an 80-sheet ADF and USB 3.0 connectivity in a compact professional design. Its reliable paper handling, advanced image processing and high daily scanning capacity make it an excellent solution for businesses and organisations that need efficient document digitisation.
