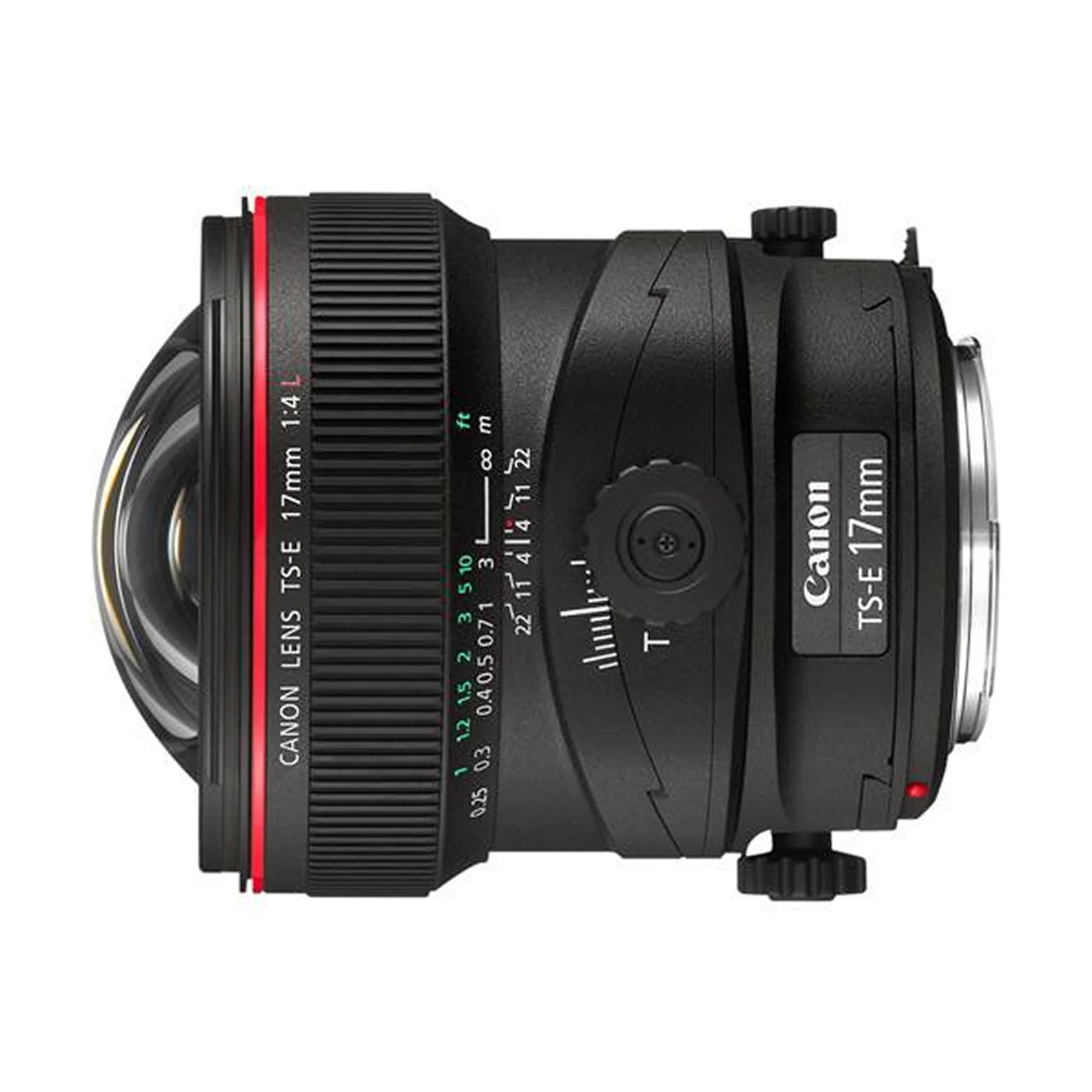

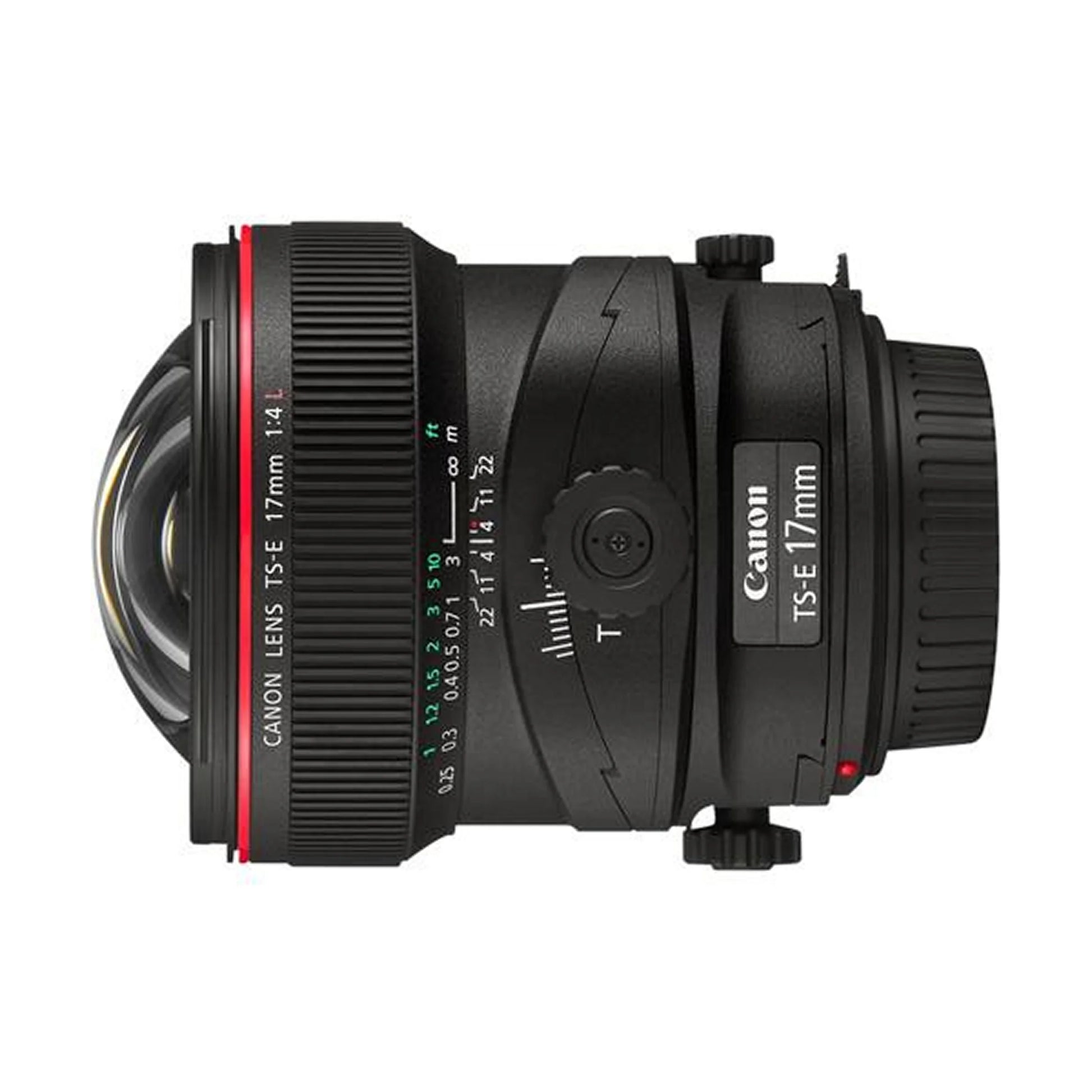

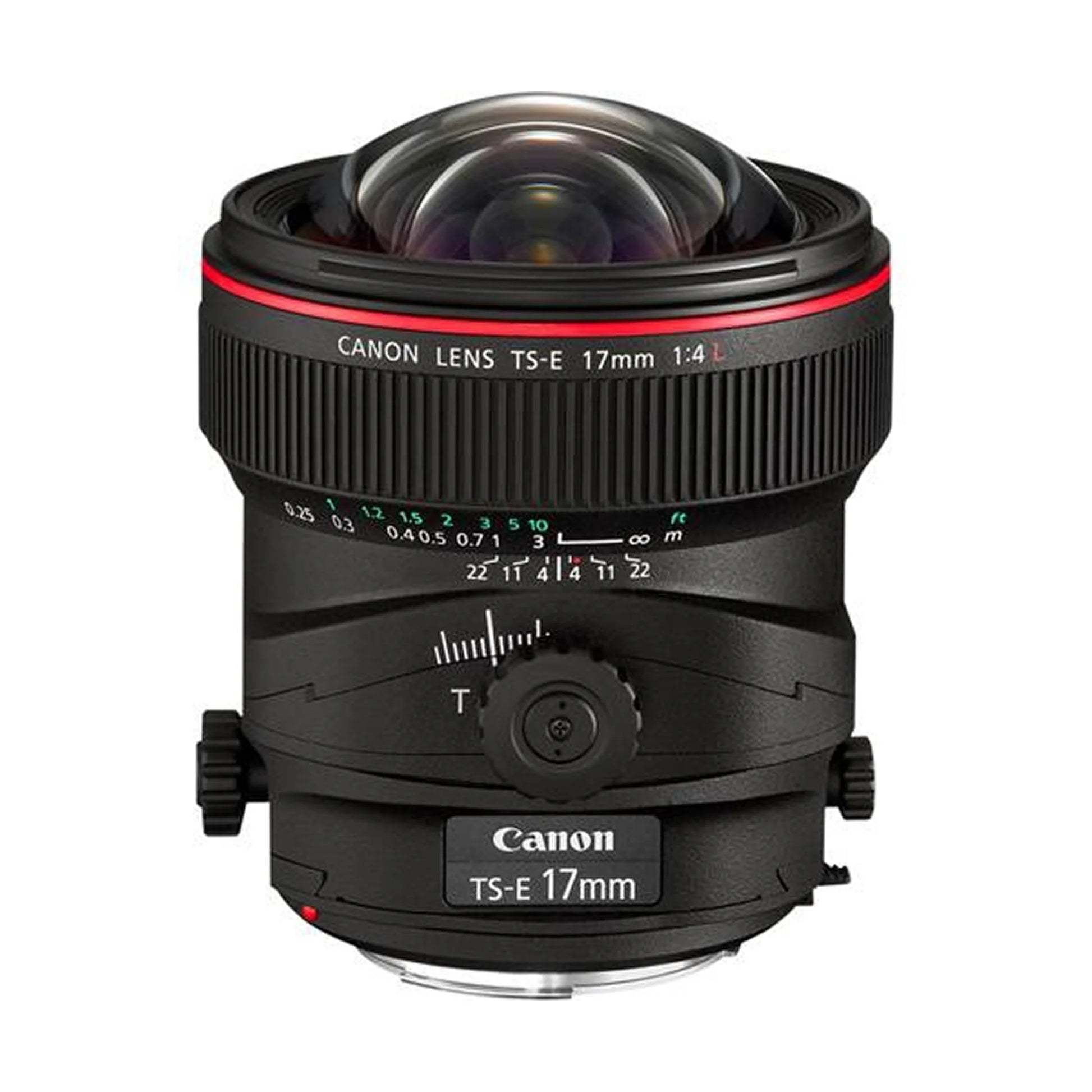

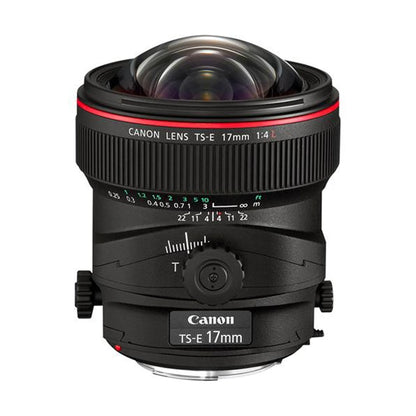

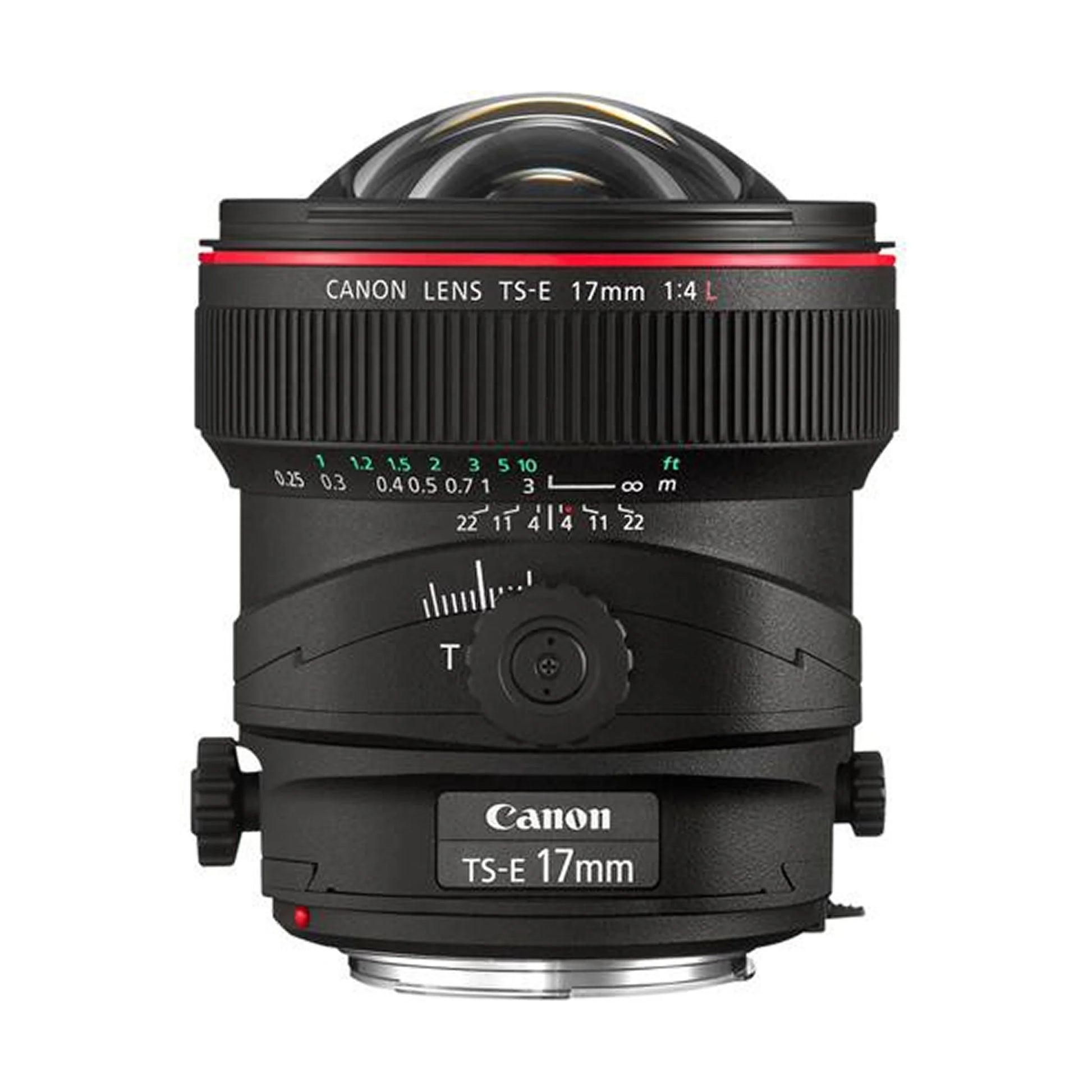

Canon TS-E 17mm f/4 L Tilt-Shift Lens

The Widest Tilt-Shift Lens in Canon's Lineup

The Canon TS-E 17mm f/4L Tilt-Shift Lens is an ultra-wide, manual-focus specialty lens designed for Canon EF-mount full-frame cameras, built for photographers who need precise control over perspective and depth of field. As the widest tilt-shift lens in Canon's L-series lineup, it expands creative and technical possibilities well beyond what standard wide-angle lenses can offer, making it a favorite for architecture, interior, and landscape photography.

Precise Perspective and Focus Control

This lens is made for photographers who need to correct converging lines and control depth of field independently of the camera's position. It offers up to 12mm of shift for perspective correction, keeping vertical lines straight without repositioning the camera, and up to 6.5 degrees of tilt for extending or restricting the plane of focus using the Scheimpflug principle. A new TS rotation mechanism lets users freely combine tilting and shifting within a range of plus or minus 90 degrees, so movements can be applied in any direction, independently of one another. Locking and friction mechanisms allow the lens to be secured at no tilt or shift, or held precisely at a chosen value.

Optical Performance and Build

The optical design features 18 elements in 12 groups, including multiple Ultra-Low Dispersion elements to significantly reduce chromatic aberration and one aspherical element to minimize spherical aberration and distortion. A Subwavelength Coating helps suppress flare and ghosting for greater contrast and color neutrality, while a floating optical system and rear focus design maintain consistent image quality throughout the focusing range. The lens delivers a diagonal angle of view of 104 degrees on a full-frame body, and its extreme corners stay notably sharp even wide open at f/4. Weighing 820g, its substantial, all-metal L-series build reflects its specialized, professional-grade construction.

Manual Focus by Design

Like all tilt-shift lenses, the TS-E 17mm f/4L is manual-focus only, giving photographers deliberate, precise control over focus placement well-suited to the methodical nature of tilt-shift photography. It does not accept standard front-mounted filters, so photographers requiring polarizers or ND filters will need a drop-in or rear filter solution.

Key Features at a Glance

• Lens: Canon TS-E 17mm f/4L Tilt-Shift
• Mount: Canon EF (full-frame compatible)
• Focal length: 17mm
• Maximum aperture: f/4
• Minimum aperture: f/22
• Optical design: 18 elements in 12 groups, including UD elements and 1 aspherical element
• Aperture blades: 8 (circular)
• Focus: manual only
• Tilt range: up to ±6.5°
• Shift range: up to ±12mm
• Movement rotation: ±90°
• Minimum focus distance: 0.28m (11in)
• Maximum magnification: 0.14x
• Angle of view: 104° diagonal (up to 126° with shift)
• Weight: approx. 820g
• Dimensions: approx. 88.9mm (diameter) x 106.7mm (length)
• Filter: no front filter thread

A Strong Choice for Architecture, Interior, and Landscape Photography

The Canon TS-E 17mm f/4L Tilt-Shift Lens is a smart choice for photographers who need exceptional wide-angle coverage combined with professional-grade perspective and focus control. Its combination of an ultra-wide field of view, precise tilt-shift movements, and L-series optical performance makes it a natural fit for architectural photographers, interior specialists, and landscape shooters who demand technical precision in their compositions.
