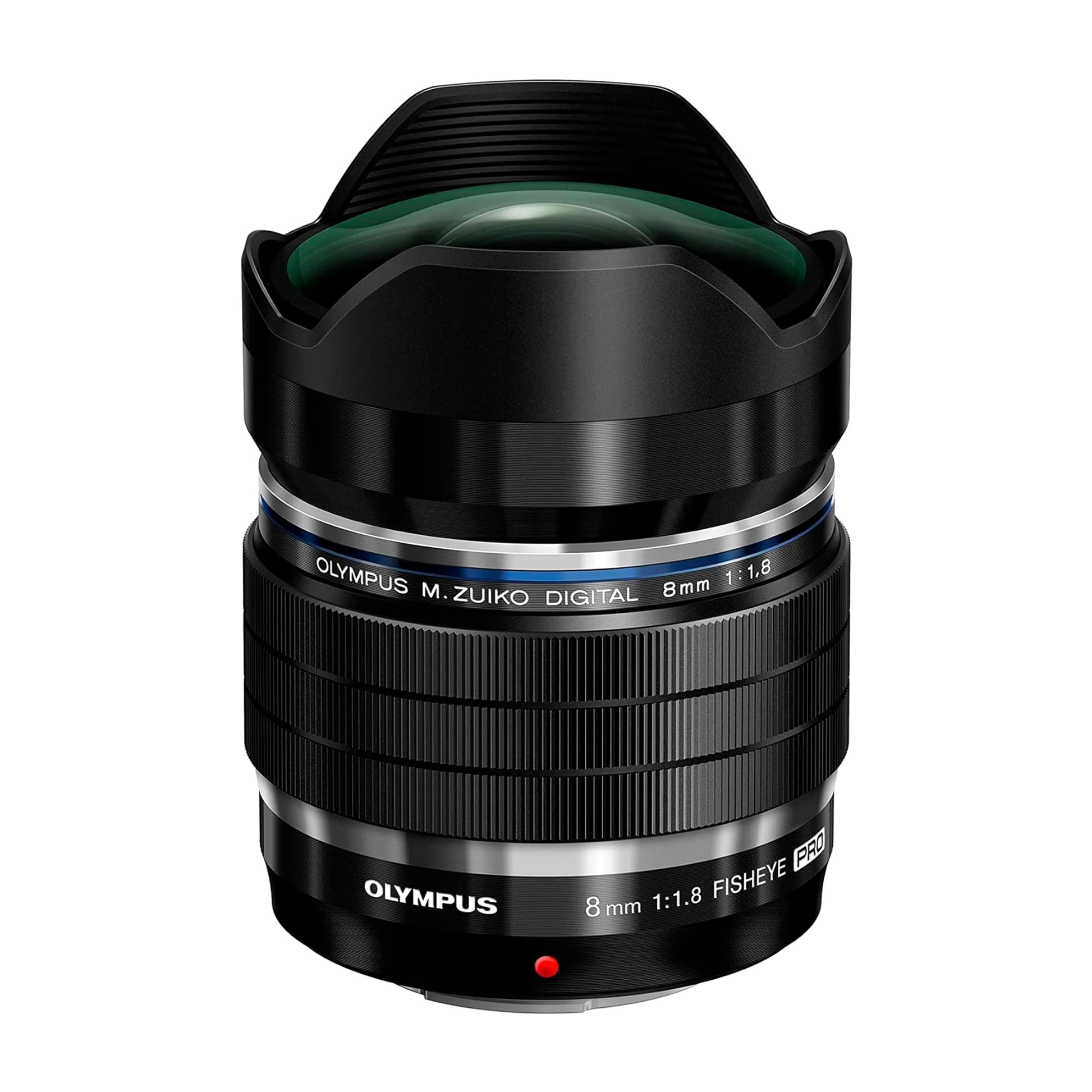

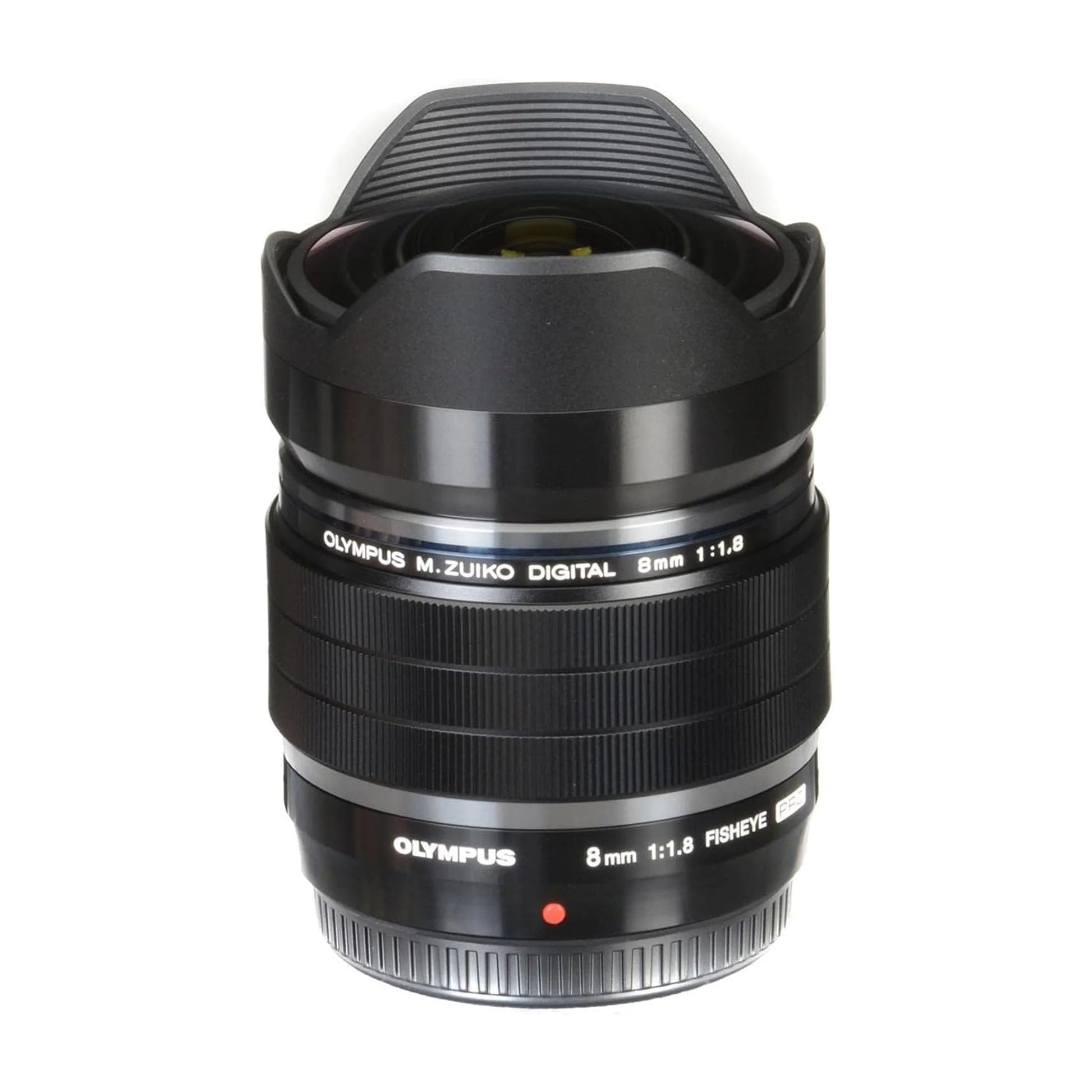

Olympus M.Zuiko ED 8mm F1.8 Fisheye PRO Black

The Olympus M.Zuiko Digital ED 8mm f/1.8 Fisheye PRO is a high-performance ultra-wide-angle prime lens designed for the Micro Four Thirds system. It is part of Olympus’s PRO series, meaning it emphasizes optical excellence, rugged construction, and advanced usability for professional photographers.

Optical design and image quality

This lens features a sophisticated optical construction with 17 elements in 15 groups, including aspherical, ED (extra-low dispersion), Super ED, and high-refractive elements. These specialized elements reduce chromatic aberration, distortion artifacts (within fisheye limits), and maintain high sharpness across the entire frame.

A defining characteristic is its 180-degree diagonal angle of view, producing the classic fisheye effect with strong barrel distortion and curved lines. Despite this extreme perspective, the lens is engineered to retain detail even at the edges of the frame and at wide apertures.

Olympus applies ZERO (Zuiko Extra-low Reflection Optical) coating, which minimizes flare and ghosting, improving contrast and clarity in high-contrast lighting conditions.

Aperture and low-light performance

The lens has a maximum aperture of f/1.8, which is unusually fast for a fisheye lens. This provides:

• Strong low-light capability
• Ability to shoot handheld in darker environments
• Shallow depth-of-field effects (limited due to ultra-wide angle)
• Suitability for astrophotography and night sky imaging

The aperture range extends from f/1.8 to f/22, with a 7-blade circular diaphragm that helps produce smoother rendering of highlights.

Focal length and perspective

• Focal length: 8mm (16mm full-frame equivalent)
• Type: Full-frame fisheye (diagonal fisheye)

The lens captures an extremely wide field, making it ideal for:

• Creative and experimental photography
• Architecture and interiors
• Landscape and environmental scenes
• Action sports and close-up dramatic perspectives

Because of the fisheye design, straight lines near the edges of the frame appear curved, which can be used creatively or corrected in post-processing.

Close focusing and magnification

The lens offers a minimum focusing distance of just 0.12 meters, allowing subjects to be placed very close to the front element.

• Maximum magnification: 0.2×

This enables exaggerated perspective effects, where foreground subjects appear very large relative to the background.

Autofocus and operation

The lens uses an internal focusing system with a stepper motor, delivering:

• Fast and accurate autofocus
• Quiet operation suitable for video
• Stable balance (no extending barrel)

It supports autofocus and manual focus control, though it does not include a manual focus clutch like some other PRO primes.

Build quality and construction

As part of the PRO lineup, the lens is built for demanding environments:

• Dustproof, splashproof, and freezeproof sealing
• Solid, high-quality construction
• Integrated lens hood (non-removable)

This makes it suitable for outdoor, travel, and harsh weather shooting conditions.

Physical specifications

• Weight: approximately 314–315 g
• Length: 80 mm
• Diameter: 62 mm
• Filter use: not standard due to bulbous front element
• Hood: built-in


Special features and applications

This lens stands out for several unique capabilities:

• First fisheye lens with f/1.8 aperture in its class
• Compatible with underwater housings and dome ports
• Can be “de-fished” in software for ultra-wide rectilinear results
• Excellent for astrophotography due to wide field + fast aperture

Key specifications:

• Mount: Micro Four Thirds
• Focal length: 8mm (16mm equivalent)
• Aperture: f/1.8 – f/22
• Optical design: 17 elements / 15 groups
• Minimum focus distance: 0.12 m
• Magnification: 0.2×
• Weight: ~315 g
• Weather sealing: Yes
